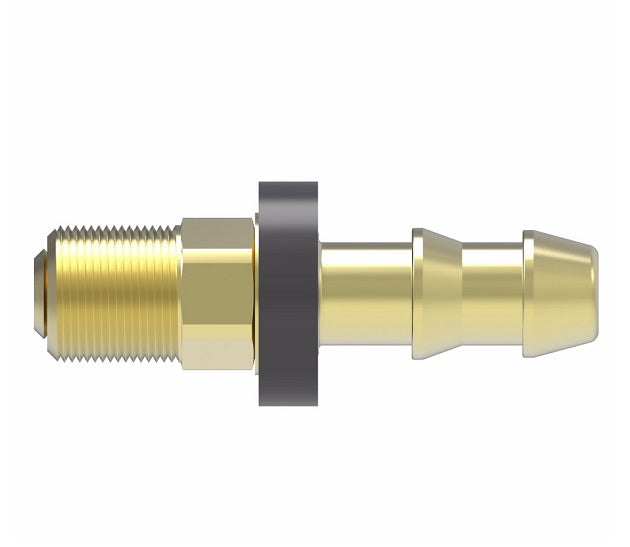

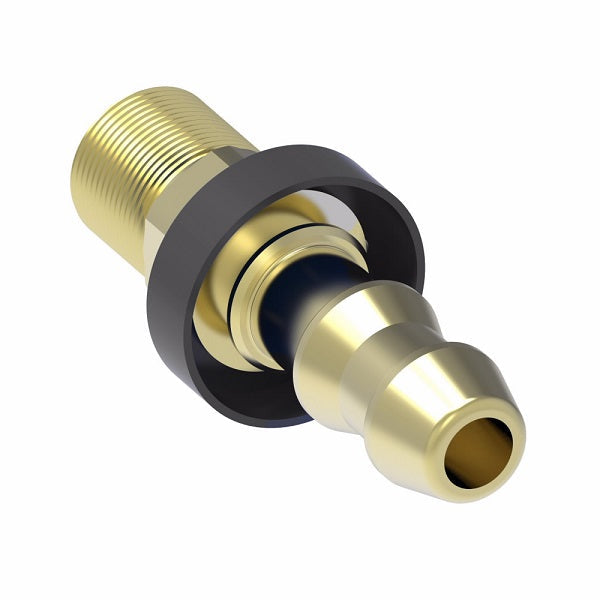

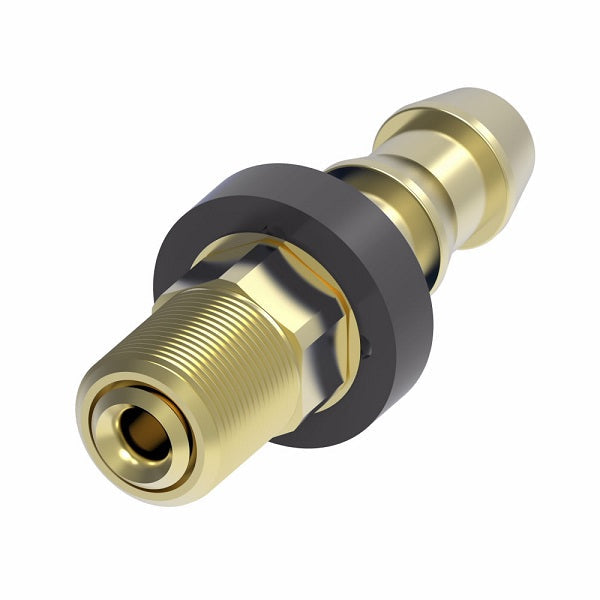

4740-4B Aeroquip by Danfoss | Male SAE 45° Inverted Flare Socketless Reusable Hose Fitting | -04 Male SAE 45° Inverted Flare x -04 Push-On Hose Barb | Brass

4740-4B Aeroquip by Danfoss | Male SAE 45° Inverted Flare Socketless Reusable Hose Fitting | -04 Male SAE 45° Inverted Flare x -04 Push-On Hose Barb | Brass

Name: 4740-4B Aeroquip by Danfoss | Male SAE 45° Inverted Flare Socketless Reusable Hose Fitting | -04 Male SAE 45° Inverted Flare x -04 Push-On Hose Barb | Brass
Brand: Danfoss/Eaton
SKU: 4740-4B Danfoss
Price: 6.79 USD
Availability: InStock

$6.79 - $6.79

$6.79

$6.79 - $6.79

$6.79

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Male SAE 45° Inverted Flare - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4740-4B Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male Inverted Flare, 1/4in Push-On Hose Barb
Material(s):	Brass
Compatible with the following Series:	2556 Series \| 2565 Series \| FC332 Series \| FC647 Series \| H201 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Brass Part Number	Hose Size	Thread	A	D	EØ
4740-3-4B	-04	3/8-24	1.52"	0.78"	0.13"
4740-4B	-04	7/16-24	1.55"	0.80"	0.17"
4740-6B	-06	5/8-18	1.75"	0.89"	0.30"
4740-8B	-08	3/4-18	1.99"	0.97"	0.39"
4740-10B	-10	7/8-18	2.58"	1.04"	0.48"
