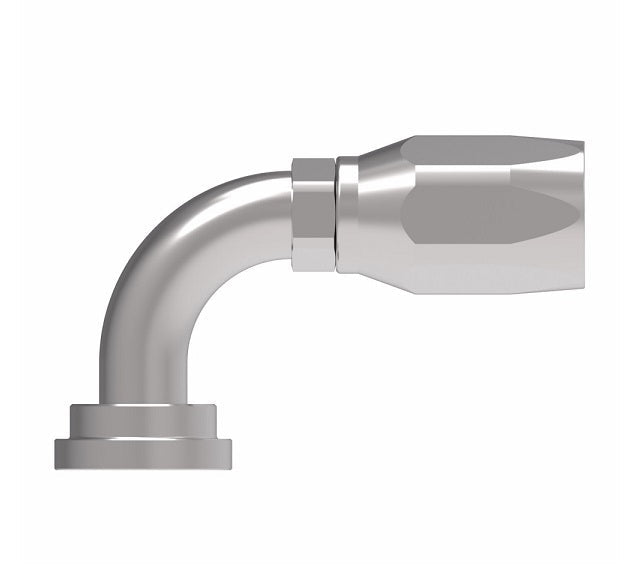

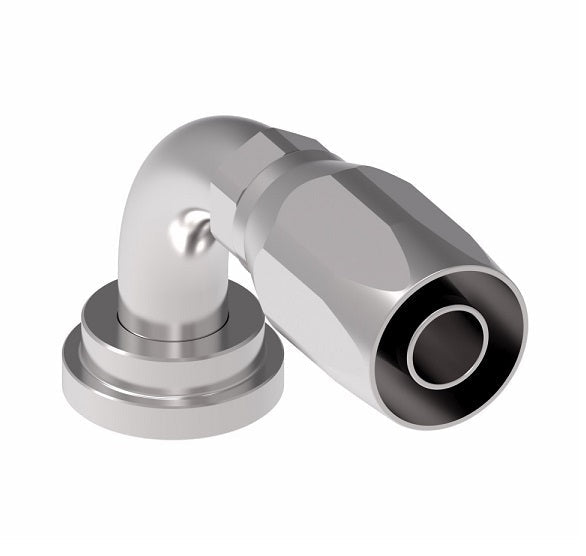

4790-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel

4790-16S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,405.00 - $1,405.00

$1,405.00

$1,405.00 - $1,405.00

$1,405.00

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - 90° Elbow

SAE J518

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4790-16S Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	1in Code 61 Flange, 1in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Flange Head Diameter	A	D	EØ	H
4790-16-12S	-12	1.75"	4.11"	2.24"	0.61"	2.12"
4790-16S	-16	1.75"	4.84"	2.79"	0.82"	2.38"
4790-20-16S	-16	2.00"	4.84"	2.79"	0.82"	2.38"
4790-20S	-20	2.00"	5.68"	3.36"	1.05"	2.50"
4790-24-20S	-20	2.38"	5.68"	3.36"	1.05"	2.50"
4790-24S	-24	2.38"	5.91"	3.68"	1.28"	2.75"
4790-32S	-32	2.81"	6.84"	4.40"	1.75"	3.25"
