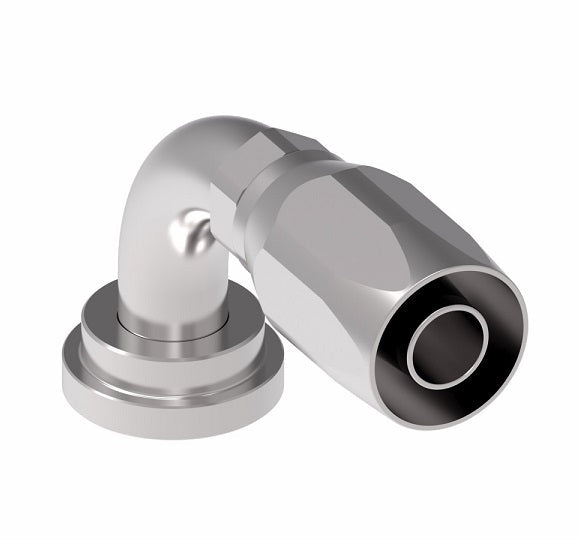

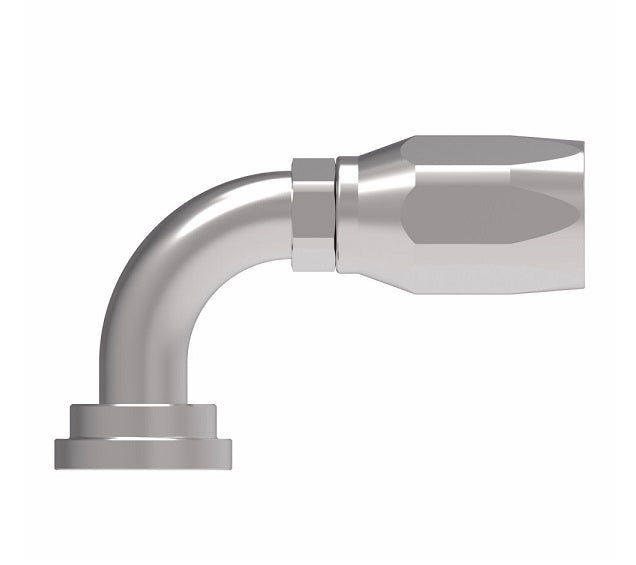

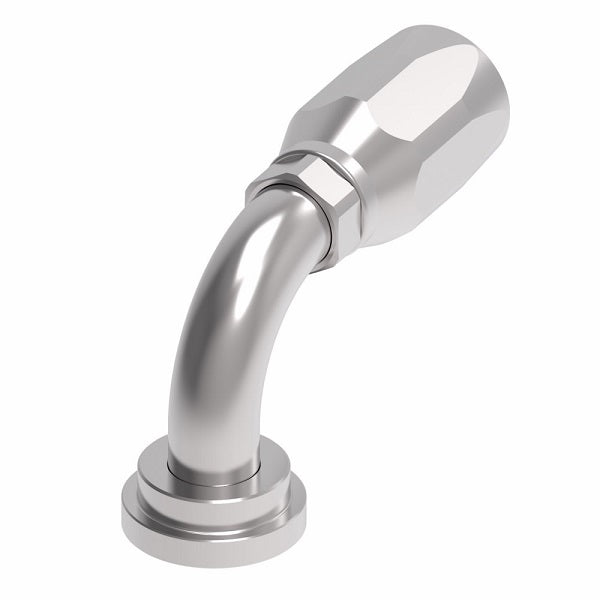

4790-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel
4790-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel
4790-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel
4790-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel

4790-32S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -32 Code 61 Split Flange x -32 Reusable Hose End | Steel

$722.55 - $722.55
$722.55
$722.55 - $722.55
$722.55

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - 90° Elbow

SAE J518

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4790-32S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 2in Code 61 Flange, 2in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4790-16-12S -12 1.75" 4.11" 2.24" 0.61" 2.12"
4790-16S -16 1.75" 4.84" 2.79" 0.82" 2.38"
4790-20-16S -16 2.00" 4.84" 2.79" 0.82" 2.38"
4790-20S -20 2.00" 5.68" 3.36" 1.05" 2.50"
4790-24-20S -20 2.38" 5.68" 3.36" 1.05" 2.50"
4790-24S -24 2.38" 5.91" 3.68" 1.28" 2.75"
4790-32S -32 2.81" 6.84" 4.40" 1.75" 3.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
