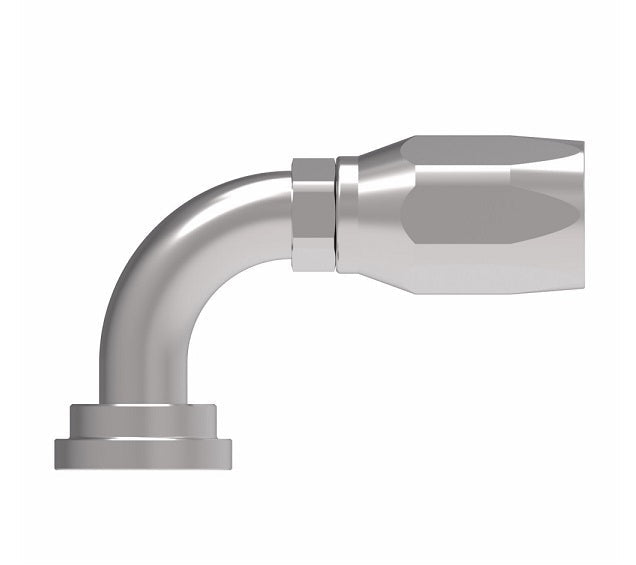

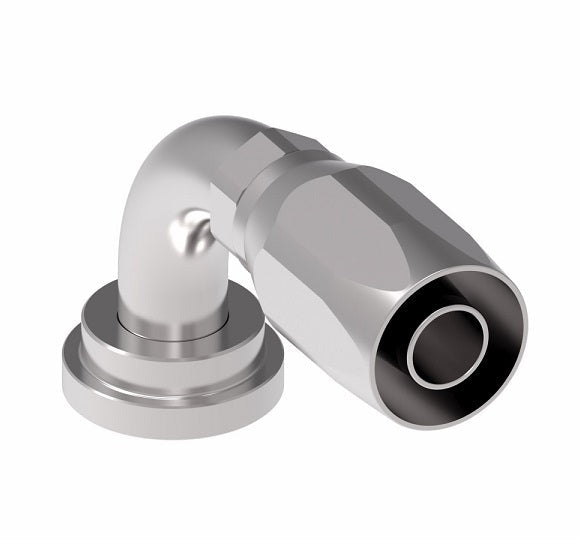

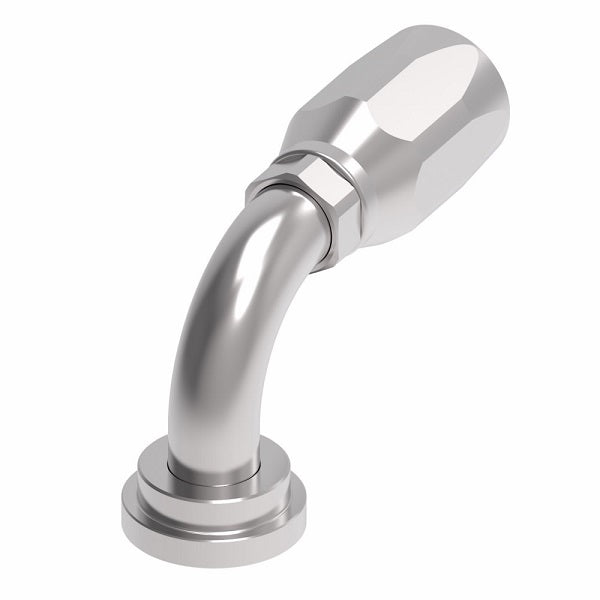

4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel
4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel

4790-20S Aeroquip by Danfoss | Code 61 Split Flange SAE J518 90° Elbow 100R2 Skive Style Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel

$235.08 - $235.08
$235.08
$235.08 - $235.08
$235.08

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - Code 61 Split Flange - 90° Elbow

SAE J518

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4790-20S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/4in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4790-16-12S -12 1.75" 4.11" 2.24" 0.61" 2.12"
4790-16S -16 1.75" 4.84" 2.79" 0.82" 2.38"
4790-20-16S -16 2.00" 4.84" 2.79" 0.82" 2.38"
4790-20S -20 2.00" 5.68" 3.36" 1.05" 2.50"
4790-24-20S -20 2.38" 5.68" 3.36" 1.05" 2.50"
4790-24S -24 2.38" 5.91" 3.68" 1.28" 2.75"
4790-32S -32 2.81" 6.84" 4.40" 1.75" 3.25"
