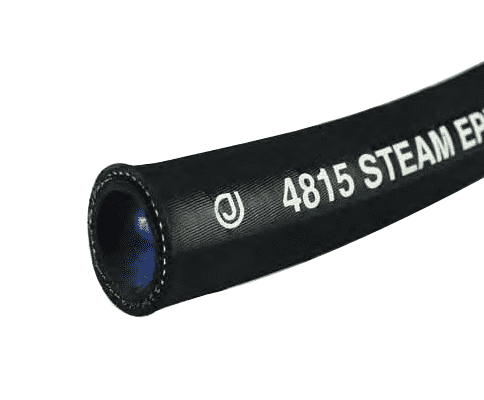

4815-0050-050 by Jason Industrial | 4815 Series | Steam Hose | 250 PSI -1/2 " ID | 1.00" OD | Black | EPDM | 50ft

4815-0050-050 by Jason Industrial | 4815 Series | Steam Hose | 250 PSI -1/2 " ID | 1.00" OD | Black | EPDM | 50ft

Save $78.37 Save $78.37
$274.30
$274.30 - $274.30
$274.30
$195.93
$195.93 - $195.93
$195.93

Jason Industrial Inc. Hose - Steam Hose - 4815 EPDM Steam Hose - Black

Package Quantity: 50 FT

Specifications for Variant SKU: 4815-0050-050 Jason | 50 |
Series: 4815 Series
Hose Color(s): Black
Internal Diameter: 0.50in
Outer Diameter: 1.00in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For the conveyance of steam in chemical/petroleum, food, lumber, pulp and processing industries SAE Rating: N/A
Other Ratings: N/A Tube: EPDM
Reinforcement: Two-ply, Steel Wire Cover: EPDM, Pin-pricked, Fabric Impression
Temperature Range: to +450 deg. F (+232 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4815 EPDM WP 250 PSI 17.25 BAR. DRAIN AFTER USE. Reverse white mylar longitudinal stripe
Other Features:
  • High working pressure
  • High temperature rating
  • Cover is weather and ozone resistant
  • Cover is pin-pricked to allow venting to eliminate blistering and cover separation
Notes:
  • WARNING: Do not use Universal Couplings with Steam Hose
  • Handling steam is a very hazardous situation. Using care and some safety precaution can minimize or eliminate personal or property damage. Please see: Steam Hose Safety Recommendations PDF for safety information.
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4815-0050-050 1/2" 12.70mm 1.00" 25.40mm 2 250 PSI 17.25 BAR N/A 0.40 lb./ft. 0.60 KG/m 5.90" 150.00mm 50ft
4815-0050-100 1/2" 12.70mm 1.00" 25.40mm 2 250 PSI 17.25 BAR N/A 0.40 lb./ft. 0.60 KG/m 5.90" 150.00mm 100ft
4815-0075-050 3/4" 19.05mm 1.25" 31.75mm 2 250 PSI 17.25 BAR N/A 0.51 lb./ft. 0.76 KG/m 8.30" 210.00mm 50ft
4815-0075-100 3/4" 19.05mm 1.25" 31.75mm 2 250 PSI 17.25 BAR N/A 0.51 lb./ft. 0.76 KG/m 8.30" 210.00mm 100ft
4815-0100-050 1" 25.40mm 1.50" 38.10mm 2 250 PSI 17.25 BAR N/A 0.67 lb./ft. 1.00 KG/m 11.00" 280.00mm 50ft
4815-0100-100 1" 25.40mm 1.50" 38.10mm 2 250 PSI 17.25 BAR N/A 0.67 lb./ft. 1.00 KG/m 11.00" 280.00mm 100ft
4815-0125-050 1-1/4" 31.75mm 1.81" 46.04mm 2 250 PSI 17.25 BAR N/A 0.87 lb./ft. 1.29 KG/m 14.00" 355.00mm 50ft
4815-0125-100 1-1/4" 31.75mm 1.81" 46.04mm 2 250 PSI 17.25 BAR N/A 0.87 lb./ft. 1.29 KG/m 14.00" 355.00mm 100ft
4815-0150-050 1-1/2" 38.10mm 2.13" 54.61mm 2 250 PSI 17.25 BAR N/A 1.11 lb./ft. 1.65 KG/m 16.50" 420.00mm 50ft
4815-0150-100 1-1/2" 38.10mm 2.13" 54.61mm 2 250 PSI 17.25 BAR N/A 1.11 lb./ft. 1.65 KG/m 16.50" 420.00mm 100ft
4815-0300-050 3" 76.20mm 3.81" 96.84mm 2 250 PSI 17.25 BAR N/A 3.17 lb./ft. 4.72 KG/m 30.00" 762.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
