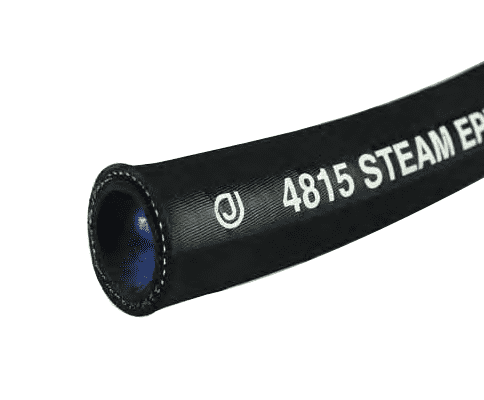

4815-0100-100 by Jason Industrial | 4815 Series | Steam Hose | 250 PSI | 1" ID | 1.50" OD | Black | EPDM | 100ft

4815-0100-100 by Jason Industrial | 4815 Series | Steam Hose | 250 PSI | 1" ID | 1.50" OD | Black | EPDM | 100ft

Save $5.86 Save $5.86
$545.86
$545.86 - $545.86
$545.86
$540.00
$540.00 - $540.00
$540.00

Jason Industrial Inc. Hose - Steam Hose - 4815 EPDM Steam Hose - Black

Package Quantity: 100 FT

Specifications for Variant SKU: 4815-0100-100 Jason | 100 |
Series: 4815 Series
Hose Color(s): Black
Internal Diameter: 1in
Outer Diameter: 1.50in
Tubing Construction: EPDM
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: For the conveyance of steam in chemical/petroleum, food, lumber, pulp and processing industries SAE Rating: N/A
Other Ratings: N/A Tube: EPDM
Reinforcement: Two-ply, Steel Wire Cover: EPDM, Pin-pricked, Fabric Impression
Temperature Range: to +450 deg. F (+232 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4815 EPDM WP 250 PSI 17.25 BAR. DRAIN AFTER USE. Reverse white mylar longitudinal stripe
Other Features:
  • High working pressure
  • High temperature rating
  • Cover is weather and ozone resistant
  • Cover is pin-pricked to allow venting to eliminate blistering and cover separation
Notes:
  • WARNING: Do not use Universal Couplings with Steam Hose
  • Handling steam is a very hazardous situation. Using care and some safety precaution can minimize or eliminate personal or property damage. Please see: Steam Hose Safety Recommendations PDF for safety information.
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
4815-0050-050 1/2" 12.70mm 1.00" 25.40mm 2 250 PSI 17.25 BAR N/A 0.40 lb./ft. 0.60 KG/m 5.90" 150.00mm 50ft
4815-0050-100 1/2" 12.70mm 1.00" 25.40mm 2 250 PSI 17.25 BAR N/A 0.40 lb./ft. 0.60 KG/m 5.90" 150.00mm 100ft
4815-0075-050 3/4" 19.05mm 1.25" 31.75mm 2 250 PSI 17.25 BAR N/A 0.51 lb./ft. 0.76 KG/m 8.30" 210.00mm 50ft
4815-0075-100 3/4" 19.05mm 1.25" 31.75mm 2 250 PSI 17.25 BAR N/A 0.51 lb./ft. 0.76 KG/m 8.30" 210.00mm 100ft
4815-0100-050 1" 25.40mm 1.50" 38.10mm 2 250 PSI 17.25 BAR N/A 0.67 lb./ft. 1.00 KG/m 11.00" 280.00mm 50ft
4815-0100-100 1" 25.40mm 1.50" 38.10mm 2 250 PSI 17.25 BAR N/A 0.67 lb./ft. 1.00 KG/m 11.00" 280.00mm 100ft
4815-0125-050 1-1/4" 31.75mm 1.81" 46.04mm 2 250 PSI 17.25 BAR N/A 0.87 lb./ft. 1.29 KG/m 14.00" 355.00mm 50ft
4815-0125-100 1-1/4" 31.75mm 1.81" 46.04mm 2 250 PSI 17.25 BAR N/A 0.87 lb./ft. 1.29 KG/m 14.00" 355.00mm 100ft
4815-0150-050 1-1/2" 38.10mm 2.13" 54.61mm 2 250 PSI 17.25 BAR N/A 1.11 lb./ft. 1.65 KG/m 16.50" 420.00mm 50ft
4815-0150-100 1-1/2" 38.10mm 2.13" 54.61mm 2 250 PSI 17.25 BAR N/A 1.11 lb./ft. 1.65 KG/m 16.50" 420.00mm 100ft
4815-0200-050 2" 50.80mm 2.64" 67.07mm 2 250 PSI 17.25 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 50ft
4815-0200-100 2" 50.80mm 2.64" 67.07mm 2 250 PSI 17.25 BAR N/A 1.80 lb./ft. 2.68 KG/m 22.00" 560.00mm 100ft
4815-0300-050 3" 76.20mm 3.81" 96.84mm 2 250 PSI 17.25 BAR N/A 3.17 lb./ft. 4.72 KG/m 30.00" 762.00mm 50ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
