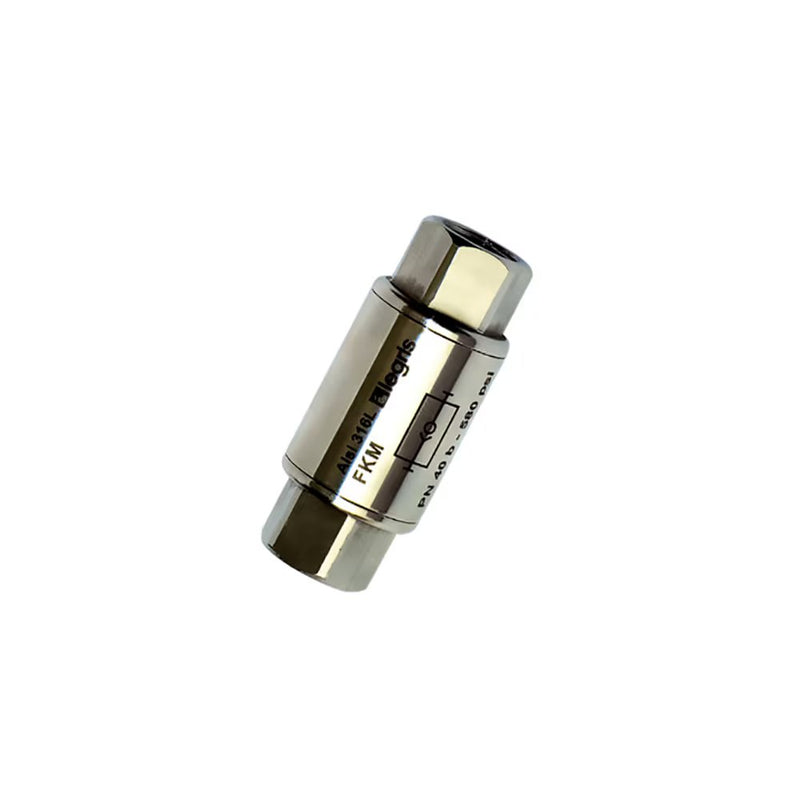

4895 18 18 by Parker | Legris Non-Return Valve | 3/8" Female NPT Thread | 67 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $168.30

$420.75

$420.75 - $420.75

$420.75

$252.45

$252.45 - $252.45

$252.45

by Parker Hannifin
Stainless Steel Non-Return Valves:4895 Non-Return Valve, Female NPT Thread

Package Quantity: 2 Units

Specifications for Variant SKU: 4895 18 18 Parker \| 2 \|
Series:	4895 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel, 302 Stainless Steel
Seal Material(s):	FKM
Special Properties:	Corrosion Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: .5 to 40 bar Working Temperature: -20°C to +180°C
Advantages:	Mechanical robustness and reduced dimensions Suitable for use with many chemicals or in corrosive environments Flow direction symbol protects against incorrect installation Smooth external surfaces contribute to equipment cleanliness
Regulations:	RoHS PED REACH
Component Materials:	Body: 316L Stainless Steel Seal: FKM Poppet: 316L Stainless Steel Spring: 302 Stainless Steel


Part Number	Diameter Nominal (DN)	C	F	G	L	Kg
4895 11 11	10 mm	1/8"	17 mm	22 mm	50 mm	.082 Kg
4895 14 14	10 mm	1/4"	17 mm	22 mm	54 mm	.079 Kg
4895 18 18	15 mm	3/8"	22 mm	30 mm	67 mm	.194 Kg
4895 22 22	15 mm	1/2"	24 mm	30 mm	77 mm	.195 Kg
