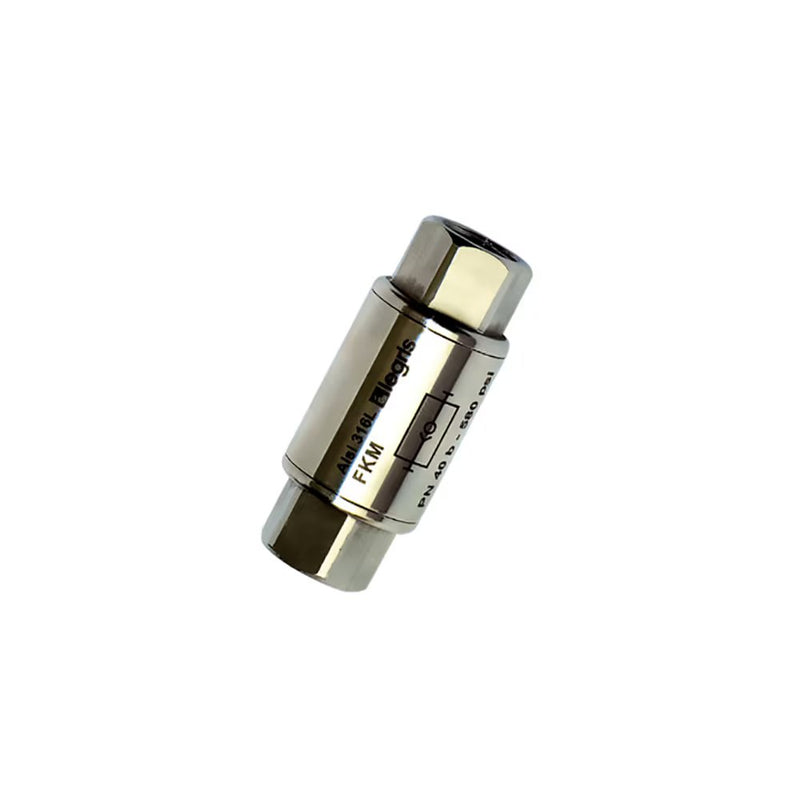

4895 22 22 by Parker | Legris Non-Return Valve | 1/2" Female NPT Thread | 77 mm Length | Straight | 316L Stainless Steel | Pack of 2

Save $18.56

$255.04

$255.04 - $255.04

$255.04

$236.48

$236.48 - $236.48

$236.48

by Parker Hannifin
Stainless Steel Non-Return Valves:4895 Non-Return Valve, Female NPT Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 4895 22 22 Parker \| 2 \|
Series:	4895 Series
Shape (Orientation):	Straight
Material(s):	316L Stainless Steel, 302 Stainless Steel
Seal Material(s):	FKM
Special Properties:	Corrosion Resistance, Silicone Free

Technical Characteristics:	Compatible Fluids: Many fluids Working Pressure: .5 to 40 bar Working Temperature: -20°C to +180°C
Advantages:	Mechanical robustness and reduced dimensions Suitable for use with many chemicals or in corrosive environments Flow direction symbol protects against incorrect installation Smooth external surfaces contribute to equipment cleanliness
Regulations:	RoHS PED REACH
Component Materials:	Body: 316L Stainless Steel Seal: FKM Poppet: 316L Stainless Steel Spring: 302 Stainless Steel


Part Number	Diameter Nominal (DN)	C	F	G	L	Kg
4895 11 11	10 mm	1/8"	17 mm	22 mm	50 mm	.082 Kg
4895 14 14	10 mm	1/4"	17 mm	22 mm	54 mm	.079 Kg
4895 18 18	15 mm	3/8"	22 mm	30 mm	67 mm	.194 Kg
4895 22 22	15 mm	1/2"	24 mm	30 mm	77 mm	.195 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
