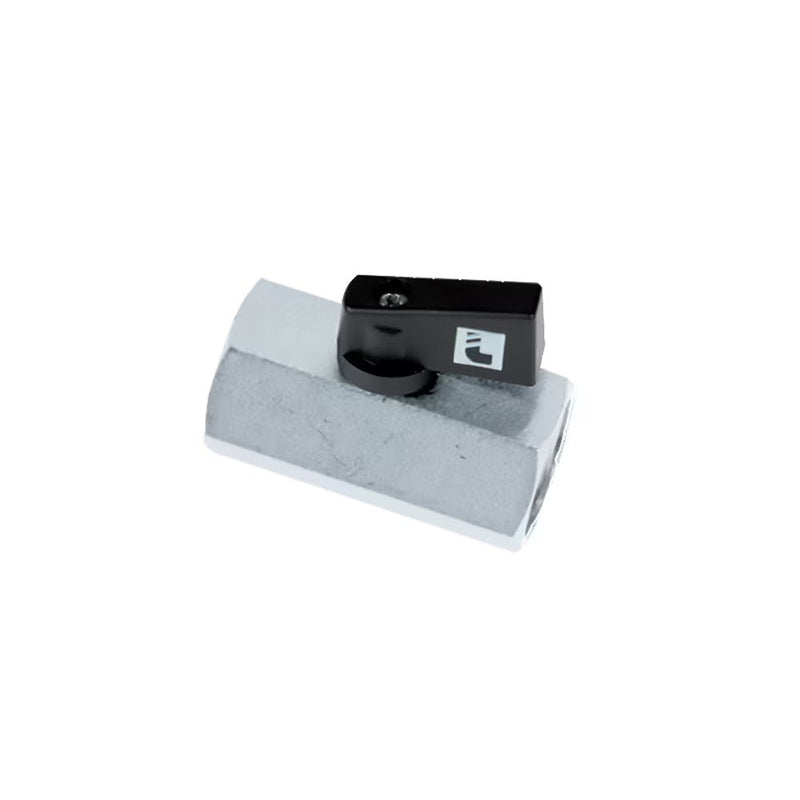

4992 00 13 by Parker | Standard Compact In-Line Ball Valve | 1/4" Female BSPP Thread | 21 mm Hex | 41.5 mm Length | Straight | Chromium Brass | Pack of 5

Save $111.20

$278.00

$278.00 - $278.00

$278.00

$166.80

$166.80 - $166.80

$166.80

by Parker Hannifin
Standard Series:4992 2/2 Standard Compact In-Line Ball Valve, Female BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 4992 00 13 Parker \| 5 \|
Series:	4992 Series
Shape (Orientation):	Straight
Material(s):	Chromium Brass, Nickel-Plated Brass, Plastic
Seal Material(s):	PTFE
Special Properties:	Silicone Free, Corrosion Resistance

Technical Characteristics:	Model: Compact Series Compatible Fluids: Compressed air Working Pressure: 0 to 30 bar Working Temperature: -10°C to +90°C
Advantages:	Long or butterfly handle Full fluid flow A lockable version for safety in use Corrosion resistance thanks to chemical nickel plating
Regulations:	PED RoHS REACH
Component Materials:	Locking System: Treated Steel Stem seal: FPM o-rings Seat seals: PTFE Long Lever: Geomet plated steel Compact Series Lever: Technical Polymer Butterfly Lever: Aluminum Locking nut and Locking screw: Zinc plated steel Stem: Nickel-Plated Brass Body: Nickel plated or chromium-plated shot blasted brass Ball: Chromium-plated brass


Part Number	Diameter Nominal (DN)	C	E	F	H	L	L1	M	Kg
4992 00 13	8 mm	1/4"	11 mm	21 mm	30 mm	41.5 mm	11 mm	24 mm	.100 Kg
4992 00 17	8 mm	3/8"	11 mm	21 mm	30 mm	41.5 mm	10.5 mm	24 mm	.094 Kg
4992 00 21	10 mm	1/2"	13 mm	25 mm	32 mm	49 mm	12.5 mm	24 mm	.142 Kg
