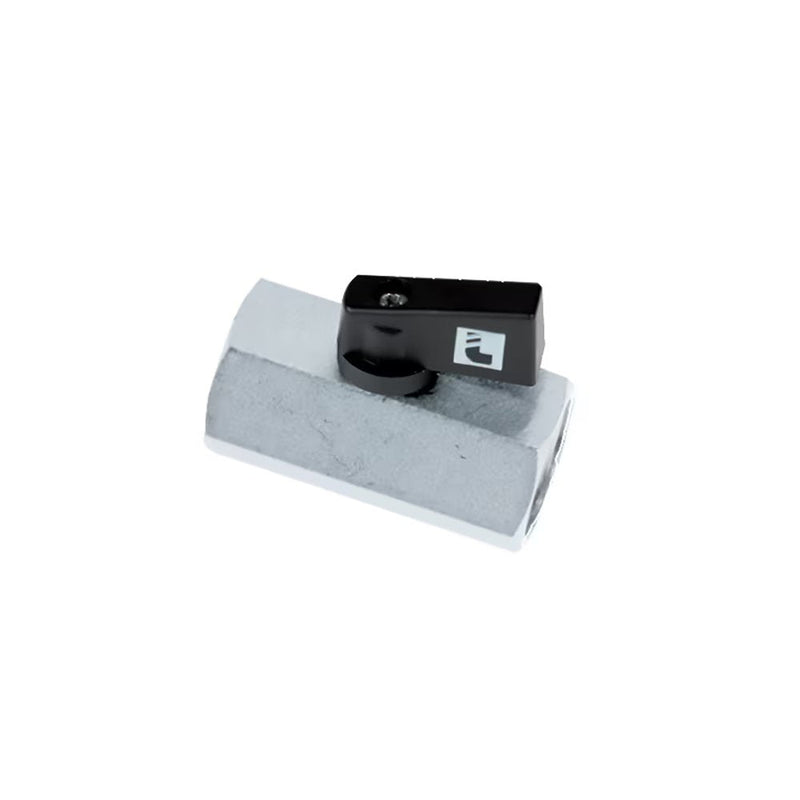

4992 00 21 by Parker | Standard Compact In-Line Ball Valve | 1/2" Female BSPP Thread | 25 mm Hex | 49 mm Length | Straight | Chromium Brass | Pack of 5

Save $130.62

$326.55

$326.55 - $326.55

$326.55

$195.93

$195.93 - $195.93

$195.93

by Parker Hannifin
Standard Series:4992 2/2 Standard Compact In-Line Ball Valve, Female BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 4992 00 21 Parker \| 5 \|
Series:	4992 Series
Shape (Orientation):	Straight
Material(s):	Chromium Brass, Nickel-Plated Brass, Plastic
Seal Material(s):	PTFE
Special Properties:	Silicone Free, Corrosion Resistance

Technical Characteristics:	Model: Compact Series Compatible Fluids: Compressed air Working Pressure: 0 to 30 bar Working Temperature: -10°C to +90°C
Advantages:	Long or butterfly handle Full fluid flow A lockable version for safety in use Corrosion resistance thanks to chemical nickel plating
Regulations:	PED RoHS REACH
Component Materials:	Locking System: Treated Steel Stem seal: FPM o-rings Seat seals: PTFE Long Lever: Geomet plated steel Compact Series Lever: Technical Polymer Butterfly Lever: Aluminum Locking nut and Locking screw: Zinc plated steel Stem: Nickel-Plated Brass Body: Nickel plated or chromium-plated shot blasted brass Ball: Chromium-plated brass


Part Number	Diameter Nominal (DN)	C	E	F	H	L	L1	M	Kg
4992 00 13	8 mm	1/4"	11 mm	21 mm	30 mm	41.5 mm	11 mm	24 mm	.100 Kg
4992 00 17	8 mm	3/8"	11 mm	21 mm	30 mm	41.5 mm	10.5 mm	24 mm	.094 Kg
4992 00 21	10 mm	1/2"	13 mm	25 mm	32 mm	49 mm	12.5 mm	24 mm	.142 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
