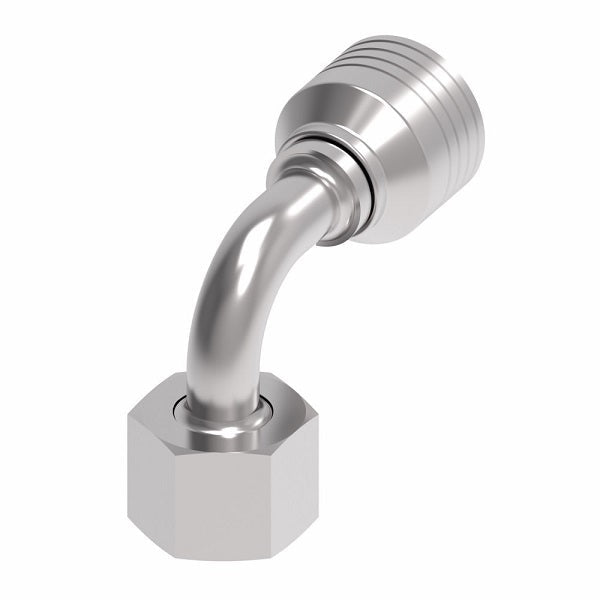

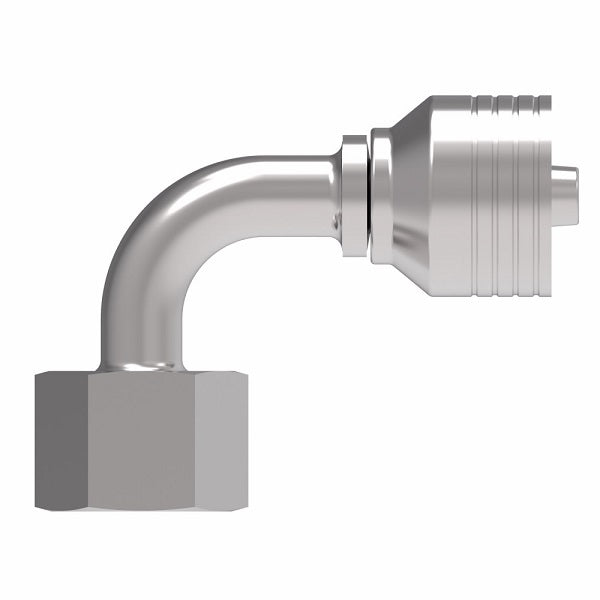

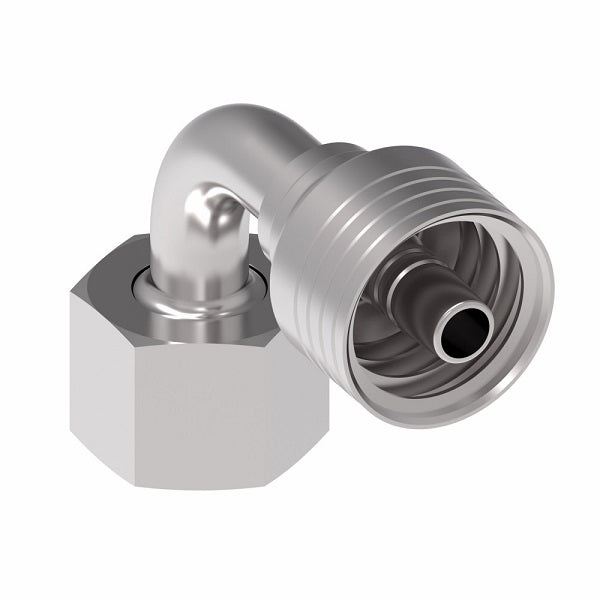

4S10DSB6 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S14 Female DKO/DIN x -06 Hose Barb | Steel
4S10DSB6 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S14 Female DKO/DIN x -06 Hose Barb | Steel
4S10DSB6 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S14 Female DKO/DIN x -06 Hose Barb | Steel

4S10DSB6 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S14 Female DKO/DIN x -06 Hose Barb | Steel

$66.75 - $66.75
$66.75
$66.75 - $66.75
$66.75

Aeroquip® by Danfoss
4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSB) - 90° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S10DSB6 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: S14 Female DIN, 3/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Tube OD Hose Size Thread A D E&Oslash H Hex 1
DN Dash Size
4S8DSB6 12 - -06 M20 x 1.5 2.20" 1.36" 0.26" 1.39" 0.94"
4S10DSB6 14 - -06 M22 x 1.5 2.35" 1.52" 0.26" 1.65" 1.06"
4S12DSB8 16 - -08 M24 x 1.5 3.06" 1.89" 0.38" 1.78" 1.18"
4S16DSB10 20 - -10 M30 x 2 3.23" 2.07" 0.50" 2.05" 1.42"
4S20DSB12 25 19 -12 M36X2 4.09" 2.67" 0.56" 2.56" 46mm
4S25DSB12 30 19 -12 M42X2 4.83" 3.40" 0.56" 2.99" 50mm
4S25DSB16 30 25 -16 M42X2 4.90" 3.34" 0.76" 2.99" 50mm
4S32DSB16 38 25 -16 M52X2 5.38" 3.82" 0.76" 3.50" 60mm
4S32DSB20 38 31 -20 M52X2 6.02" 3.86" 0.99" 3.50" 60mm
