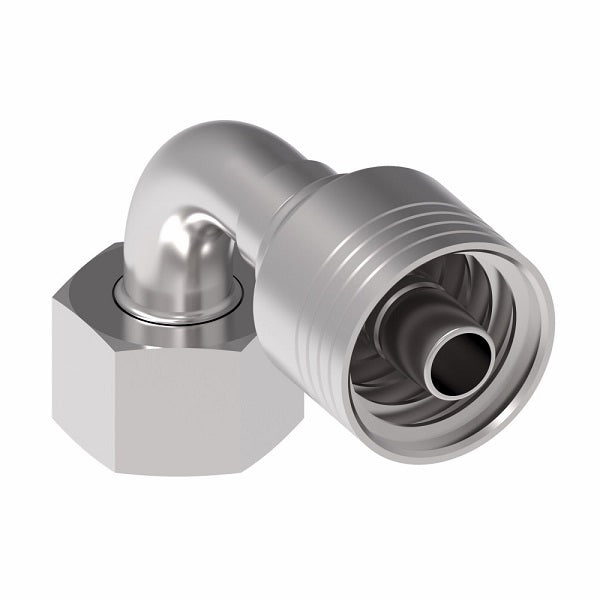

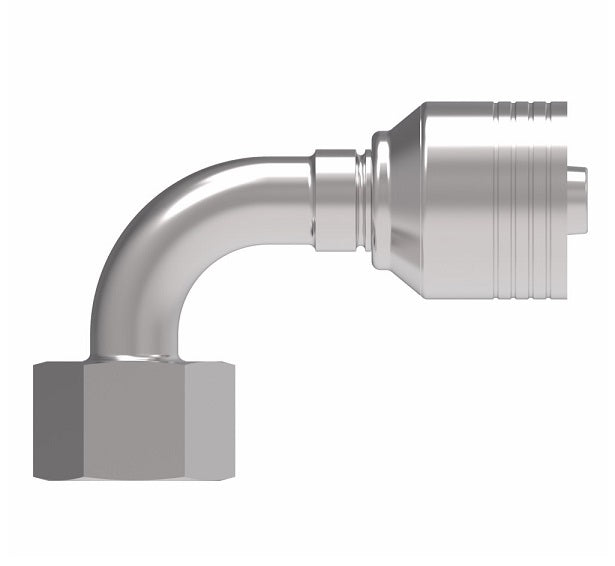

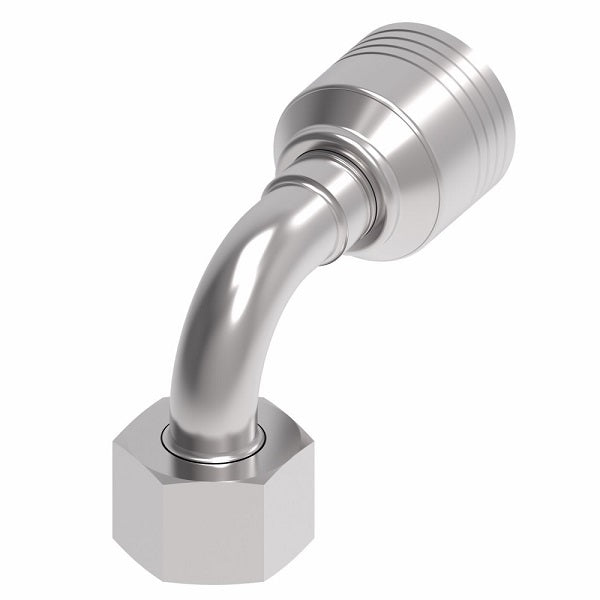

4S12DSB8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S16 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

4S12DSB8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S16 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

$753.54 - $753.54

$753.54

$753.54 - $753.54

$753.54

Aeroquip® by Danfoss
4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSB) - 90° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4S12DSB8 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	S16 Female DIN, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
4S8DSB6	12	-	-06	M20 x 1.5	2.20"	1.36"	0.26"	1.39"	0.94"
4S10DSB6	14	-	-06	M22 x 1.5	2.35"	1.52"	0.26"	1.65"	1.06"
4S12DSB8	16	-	-08	M24 x 1.5	3.06"	1.89"	0.38"	1.78"	1.18"
4S16DSB10	20	-	-10	M30 x 2	3.23"	2.07"	0.50"	2.05"	1.42"
4S20DSB12	25	19	-12	M36X2	4.09"	2.67"	0.56"	2.56"	46mm
4S25DSB12	30	19	-12	M42X2	4.83"	3.40"	0.56"	2.99"	50mm
4S25DSB16	30	25	-16	M42X2	4.90"	3.34"	0.76"	2.99"	50mm
4S32DSB16	38	25	-16	M52X2	5.38"	3.82"	0.76"	3.50"	60mm
4S32DSB20	38	31	-20	M52X2	6.02"	3.86"	0.99"	3.50"	60mm
