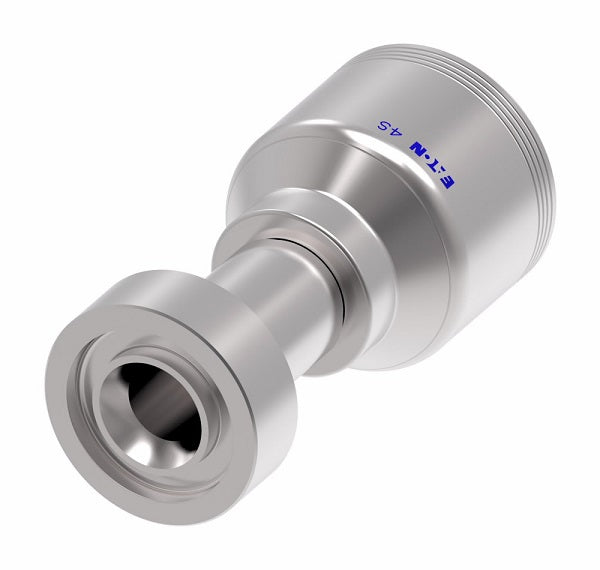

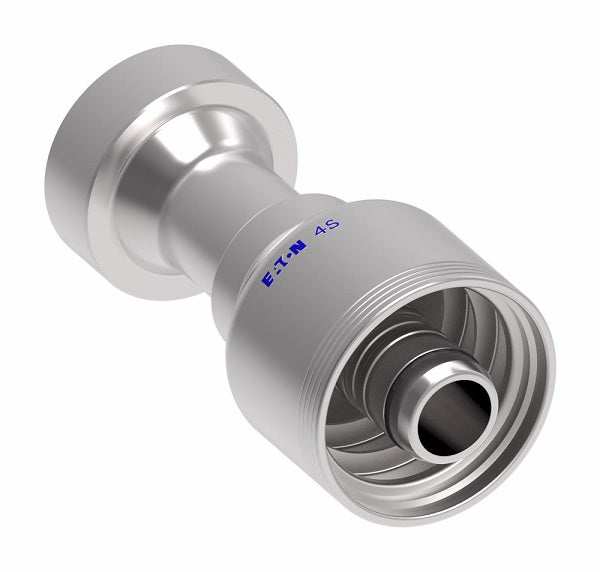

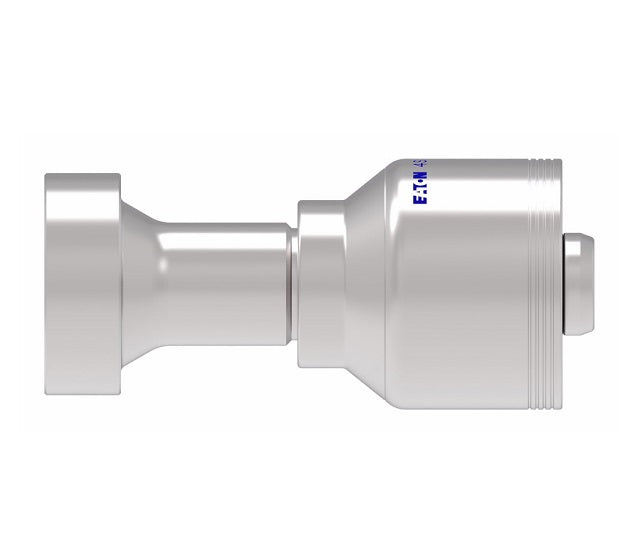

4S12CT12 Aeroquip by Danfoss | 4 Wire 4S CAT Flange (CT) Crimp Fitting | -12 CAT Flange x -12 Hose Barb | Steel

4S12CT12 Aeroquip by Danfoss | 4 Wire 4S CAT Flange (CT) Crimp Fitting | -12 CAT Flange x -12 Hose Barb | Steel

Name: 4S12CT12 Aeroquip by Danfoss | 4 Wire 4S CAT Flange (CT) Crimp Fitting | -12 CAT Flange x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4S12CT12 Danfoss
Price: 84.74 USD
Availability: InStock

$84.74 - $84.74

$84.74

$84.74 - $84.74

$84.74

Aeroquip® by Danfoss
4 Wire 4S CAT Flange Crimp Fitting (CT) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4S12CT12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in CAT Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash
4S12CT12	-12	19	-12	1.63"	3.79"	2.36"	0.56"
4S16CT12	-16	19	-12	1.87"	3.74"	2.31"	0.56"
4S16CT16	-16	25	-16	1.87"	4.02"	2.45"	0.76"
4S20CT16	-20	25	-16	2.13"	4.13"	2.56"	0.76"
4S20CT20	-20	31	-20	2.13"	4.90"	2.72"	0.99"
4S24CT24	-24	38	-24	2.50"	7.68"	4.61"	1.22"
4S32CT32	-32	51	-32	3.13"	8.22"	5.15"	1.66"
