4S32CT32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel
4S32CT32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel
4S32CT32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel

4S32CT32 Aeroquip by Danfoss | 4 Wire 4S CAT Flange (CT) Crimp Fitting | -32 CAT Flange x -32 Hose Barb | Steel

$301.37 - $301.37
$301.37
$301.37 - $301.37
$301.37

Aeroquip® by Danfoss

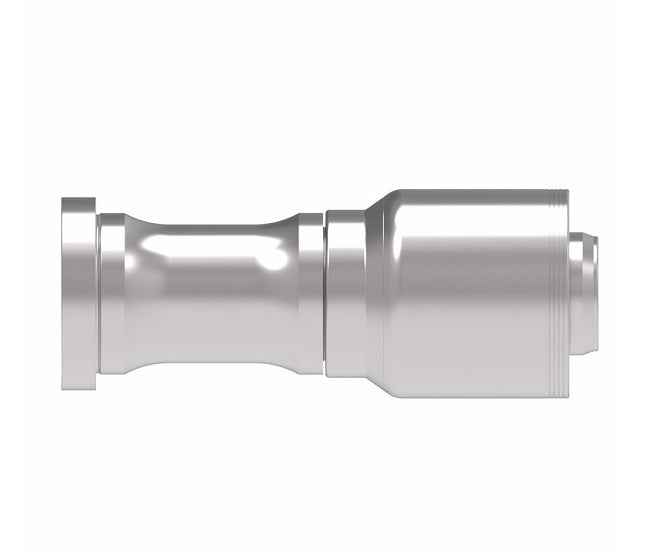

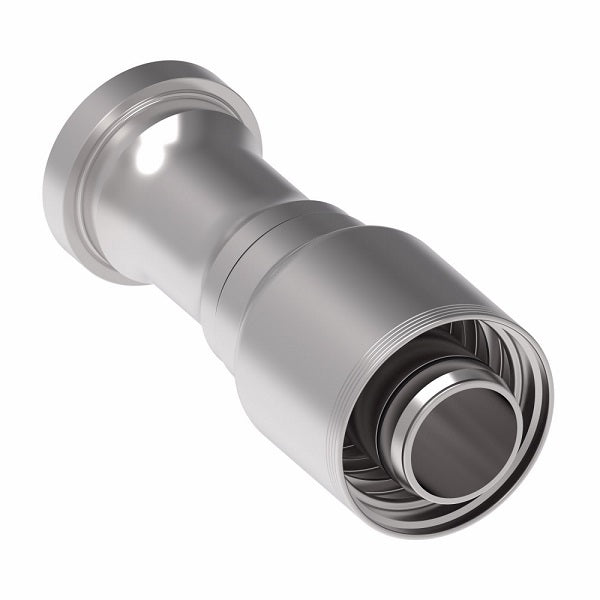

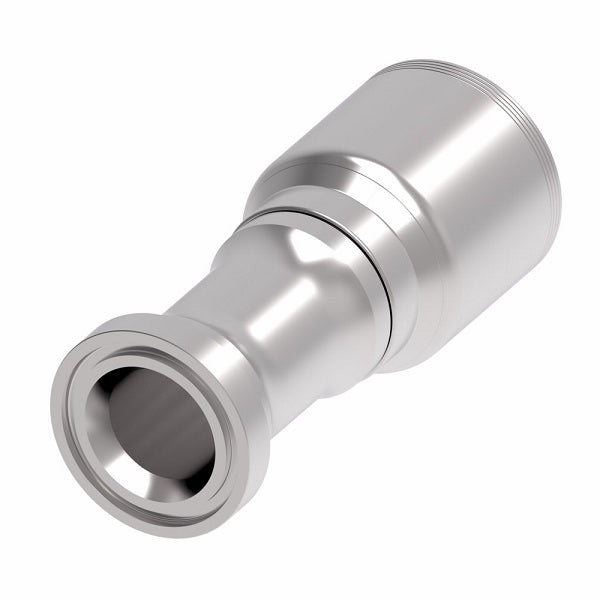

4 Wire 4S CAT Flange Crimp Fitting (CT) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S32CT32 Danfoss
Shape (Orientation): Straight
Ends Configuration: 2in CAT Flange, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash
Dash Size DN Dash Size
4S12CT12 -12 19 -12 1.63" 3.79" 2.36" 0.56"
4S16CT12 -16 19 -12 1.87" 3.74" 2.31" 0.56"
4S16CT16 -16 25 -16 1.87" 4.02" 2.45" 0.76"
4S20CT16 -20 25 -16 2.13" 4.13" 2.56" 0.76"
4S20CT20 -20 31 -20 2.13" 4.90" 2.72" 0.99"
4S24CT24 -24 38 -24 2.50" 7.68" 4.61" 1.22"
4S32CT32 -32 51 -32 3.13" 8.22" 5.15" 1.66"
