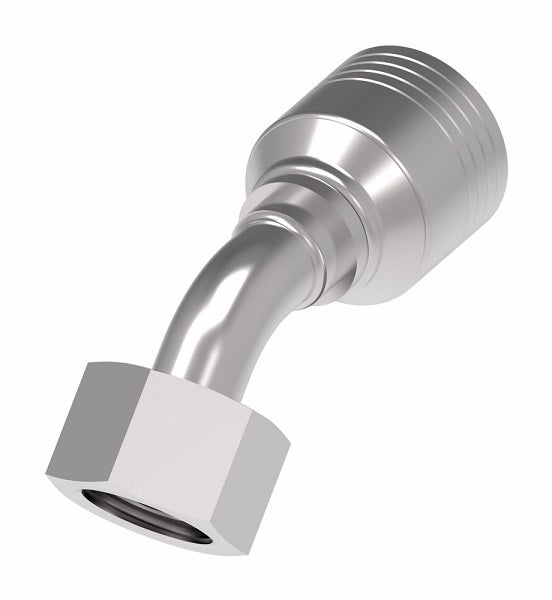

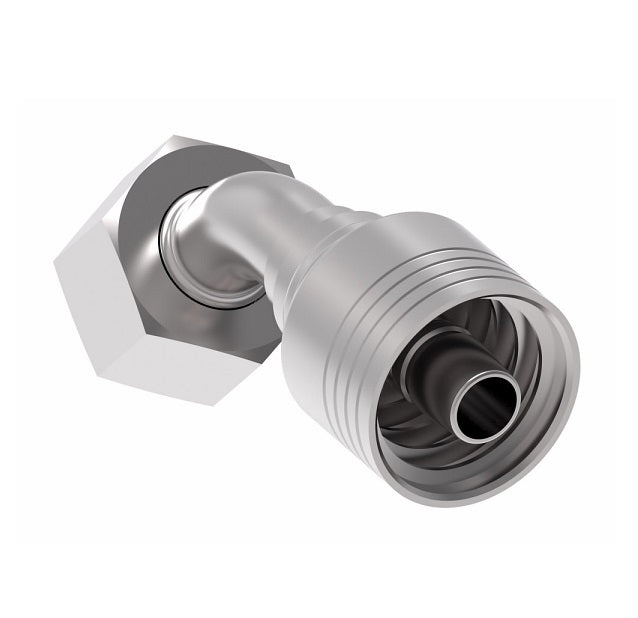

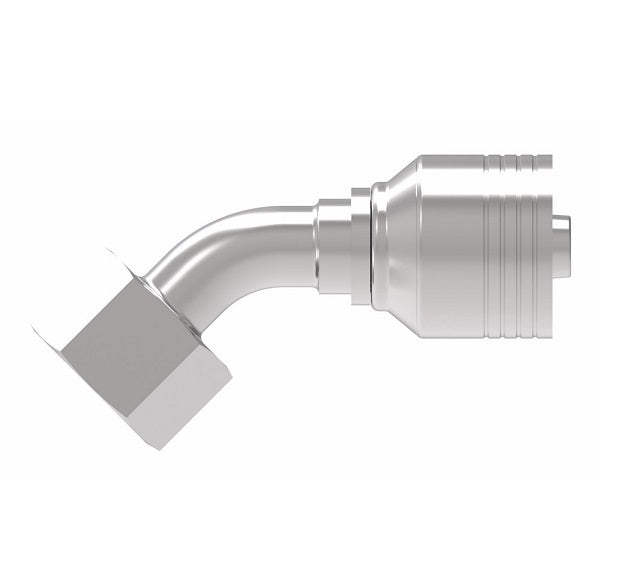

4S12DSA8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S16 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

4S12DSA8 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S16 Female DKO/DIN x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,044.40 - $1,044.40

$1,044.40

$1,044.40 - $1,044.40

$1,044.40

Aeroquip® by Danfoss
4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSA) - 45° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S12DSA8 Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	S16 Female DIN, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
4S8DSA6	12	-	-06	M20 x 1.5	2.69"	1.69"	0.26"	0.75"	0.94"
4S12DSA8	16	-	-08	M24 x 1.5	3.14"	1.97"	0.38"	0.90"	1.18"
4S16DSA10	20	-	-10	M30 x 2	3.51"	2.36"	0.50"	1.02"	1.42"
4S20DSA12	25	19	-12	M36X2	4.59"	3.17"	0.56"	1.26"	46mm
4S25DSA12	30	19	-12	M42X2	5.15"	3.72"	0.56"	1.38"	50mm
4S25DSA16	30	25	-16	M42X2	5.28"	3.72"	0.76"	1.38"	50mm
4S32DSA16	38	25	-16	M52X2	5.71"	4.15"	0.76"	1.54"	60mm
4S32DSA20	38	31	-20	M52X2	6.35"	4.19"	0.99"	1.54"	60mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
