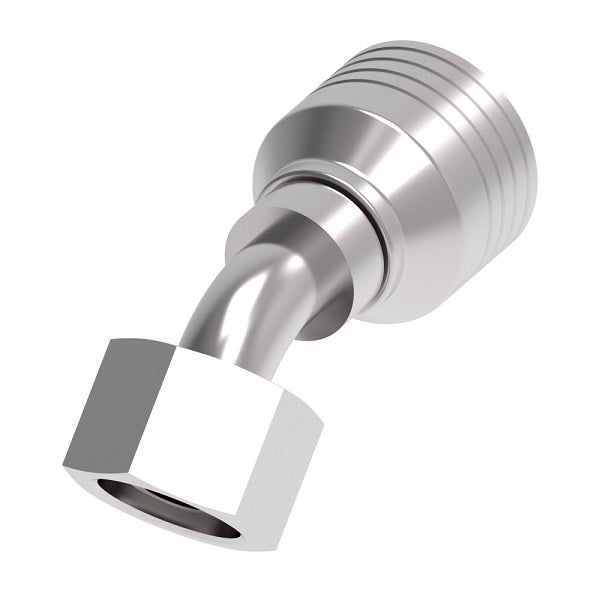

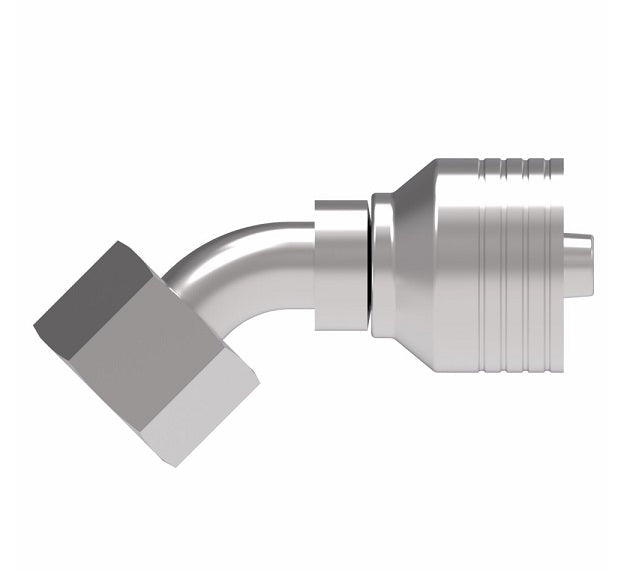

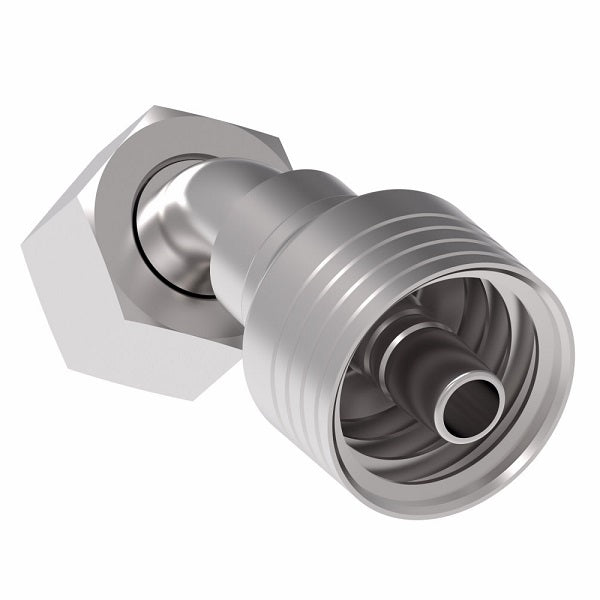

4S8DSA6 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S12 Female DKO/DIN x -06 Hose Barb | Steel | Pack of 10

4S8DSA6 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S12 Female DKO/DIN x -06 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$838.80 - $838.80

$838.80

$838.80 - $838.80

$838.80

Aeroquip® by Danfoss
4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSA) - 45° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4S8DSA6 Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	S12 Female DIN, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
4S8DSA6	12	-	-06	M20 x 1.5	2.69"	1.69"	0.26"	0.75"	0.94"
4S12DSA8	16	-	-08	M24 x 1.5	3.14"	1.97"	0.38"	0.90"	1.18"
4S16DSA10	20	-	-10	M30 x 2	3.51"	2.36"	0.50"	1.02"	1.42"
4S20DSA12	25	19	-12	M36X2	4.59"	3.17"	0.56"	1.26"	46mm
4S25DSA12	30	19	-12	M42X2	5.15"	3.72"	0.56"	1.38"	50mm
4S25DSA16	30	25	-16	M42X2	5.28"	3.72"	0.76"	1.38"	50mm
4S32DSA16	38	25	-16	M52X2	5.71"	4.15"	0.76"	1.54"	60mm
4S32DSA20	38	31	-20	M52X2	6.35"	4.19"	0.99"	1.54"	60mm
