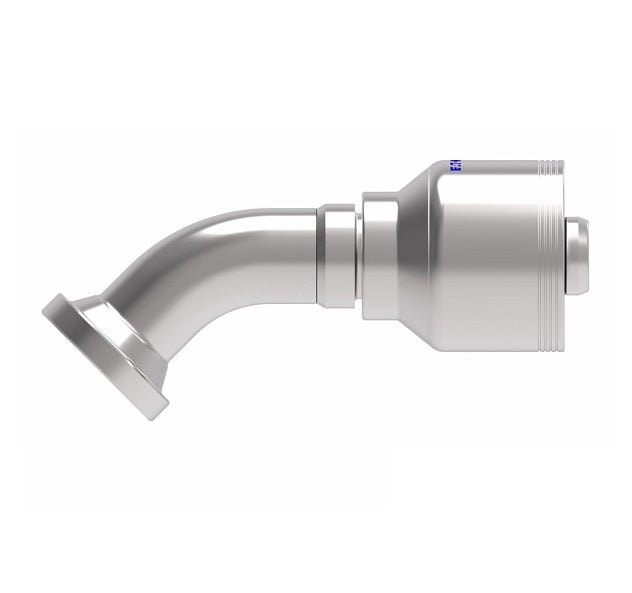

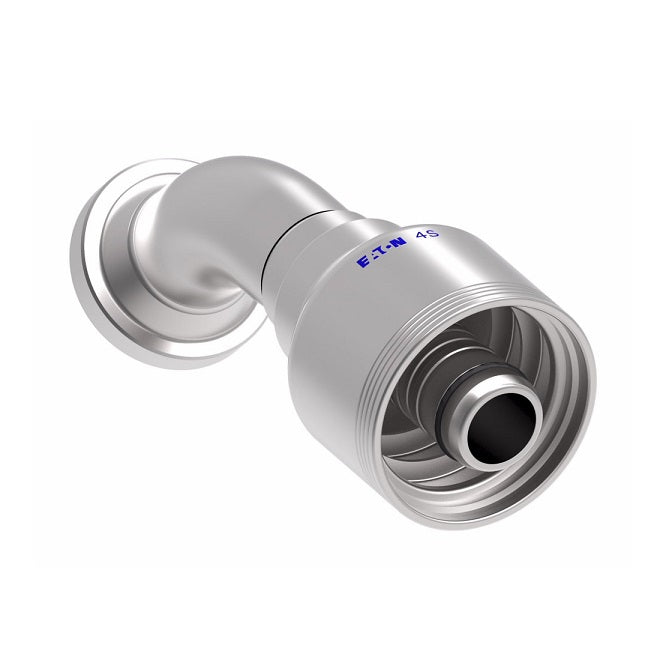

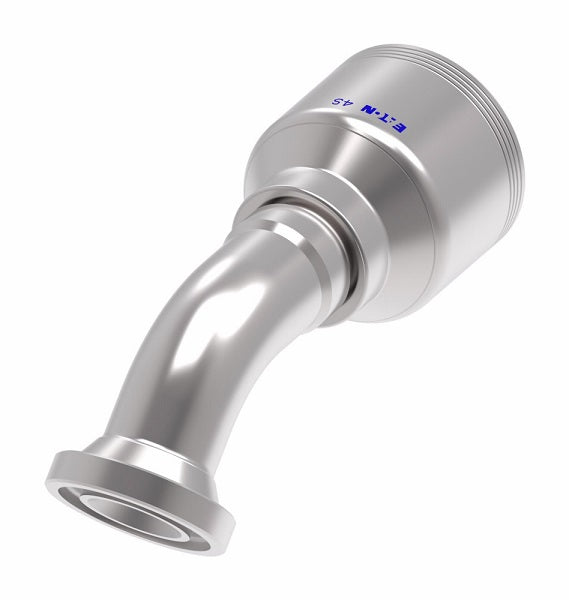

4S12FLA10 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel | Pack of 10
4S12FLA10 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel | Pack of 10
4S12FLA10 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel | Pack of 10

4S12FLA10 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -10 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,423.40 - $1,423.40
$1,423.40
$1,423.40 - $1,423.40
$1,423.40

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S12FLA10 Danfoss | 10 |
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Code 61 Flange, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S8FLA8 -08 - -08 1.19 3.05" 1.98" 0.36" 0.78"
4S12FLA8 -12 - -08 1.50 3.57" 2.50" 0.38" 1.00"
4S12FLA10 -12 - -10 1.50 3.56" 2.53" 0.50" 1.00"
4S12FLA12 -12 19 -12 1.50" 4.48" 3.06" 0.56" 1.06"
4S16FLA12 -16 19 -12 1.75" 5.04" 3.61" 0.56" 1.26"
4S12FLA16 -12 25 -16 1.50" 4.60" 3.04" 0.76" 1.06"
4S16FLA16 -16 25 -16 1.75" 5.16" 3.59" 0.76" 1.26"
4S20FLA16 -20 25 -16 2.00" 5.91" 4.35" 0.76" 1.54"
4S16FLA20 -16 31 -20 1.75" 5.99" 3.82" 0.99" 1.26"
4S20FLA20 -20 31 -20 2.00" 6.57" 4.39" 0.99" 1.54"
4S24FLA20 -24 31 -20 2.38" 6.36" 4.20" 0.99" 1.56"
4S24FLA24 -24 38 -24 2.37" 8.44" 5.37" 1.22" 1.77"
4S32FLA24 -32 38 -24 2.81" 9.88" 6.81" 1.22" 2.26"
4S32FLA32 -32 51 -32 2.81" 10.00" 6.92" 1.66" 2.26"
