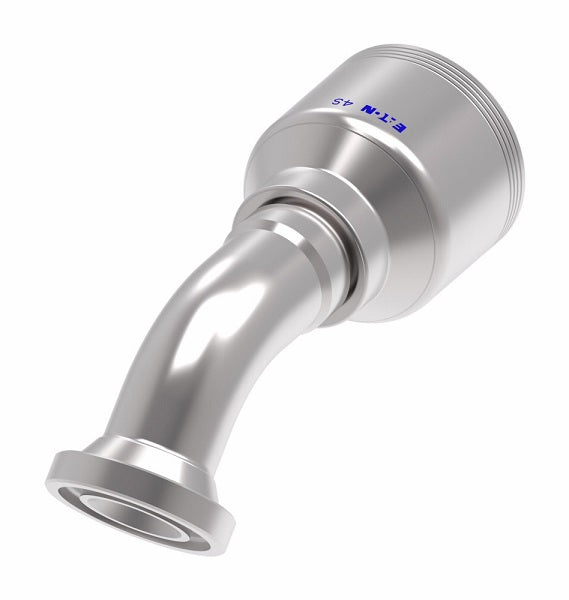

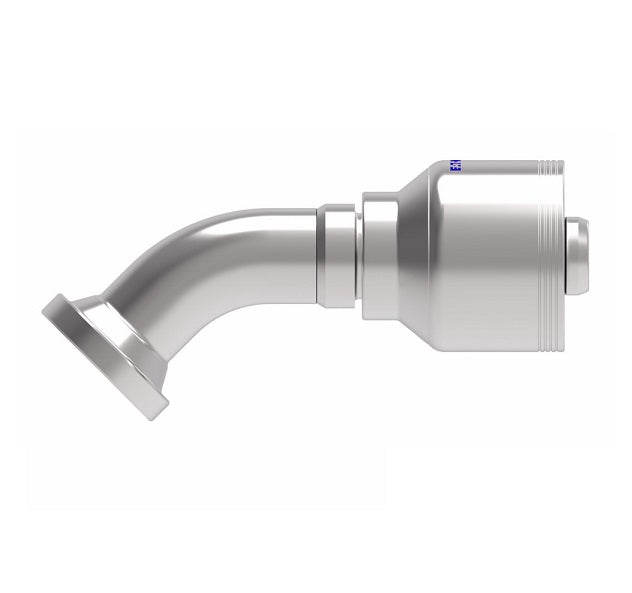

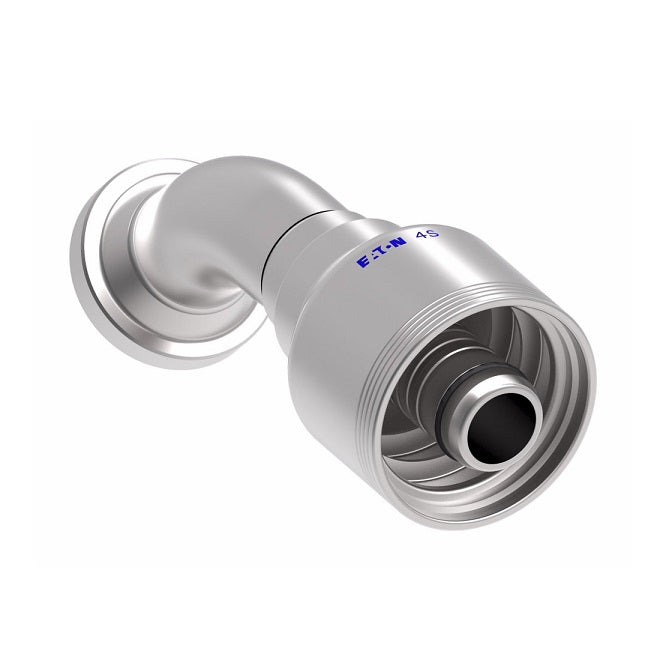

4S12FLA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -08 Hose Barb | Steel
4S12FLA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -08 Hose Barb | Steel
4S12FLA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -08 Hose Barb | Steel

4S12FLA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -12 Code 61 Split Flange x -08 Hose Barb | Steel

$106.65 - $106.65
$106.65
$106.65 - $106.65
$106.65

Aeroquip® by Danfoss
4 Wire 4S SAE Code 61 Flange Crimp Fitting (FLA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S12FLA8 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Code 61 Flange, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC636 Series  |   FC736 Series  |   GH493 Series  |   EC525 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
4S8FLA8 -08 - -08 1.19 3.05" 1.98" 0.36" 0.78"
4S12FLA8 -12 - -08 1.50 3.57" 2.50" 0.38" 1.00"
4S12FLA10 -12 - -10 1.50 3.56" 2.53" 0.50" 1.00"
4S12FLA12 -12 19 -12 1.50" 4.48" 3.06" 0.56" 1.06"
4S16FLA12 -16 19 -12 1.75" 5.04" 3.61" 0.56" 1.26"
4S12FLA16 -12 25 -16 1.50" 4.60" 3.04" 0.76" 1.06"
4S16FLA16 -16 25 -16 1.75" 5.16" 3.59" 0.76" 1.26"
4S20FLA16 -20 25 -16 2.00" 5.91" 4.35" 0.76" 1.54"
4S16FLA20 -16 31 -20 1.75" 5.99" 3.82" 0.99" 1.26"
4S20FLA20 -20 31 -20 2.00" 6.57" 4.39" 0.99" 1.54"
4S24FLA20 -24 31 -20 2.38" 6.36" 4.20" 0.99" 1.56"
4S24FLA24 -24 38 -24 2.37" 8.44" 5.37" 1.22" 1.77"
4S32FLA24 -32 38 -24 2.81" 9.88" 6.81" 1.22" 2.26"
4S32FLA32 -32 51 -32 2.81" 10.00" 6.92" 1.66" 2.26"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
