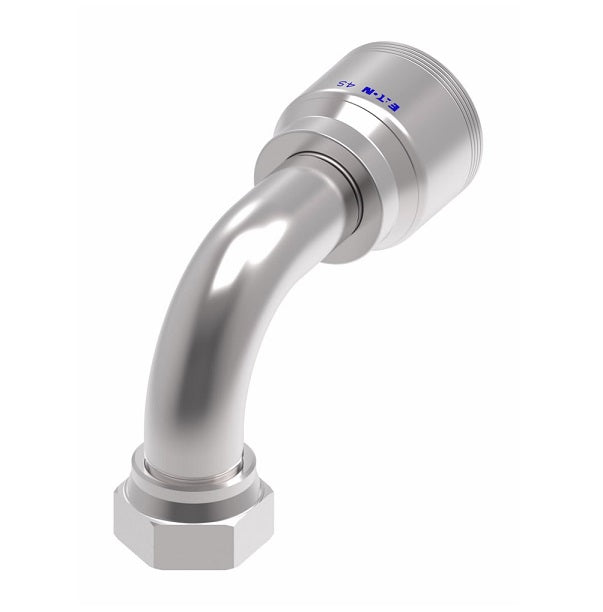

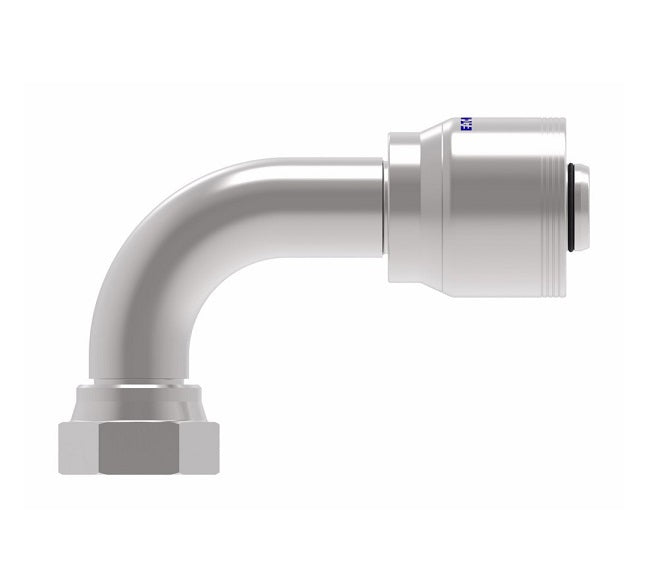

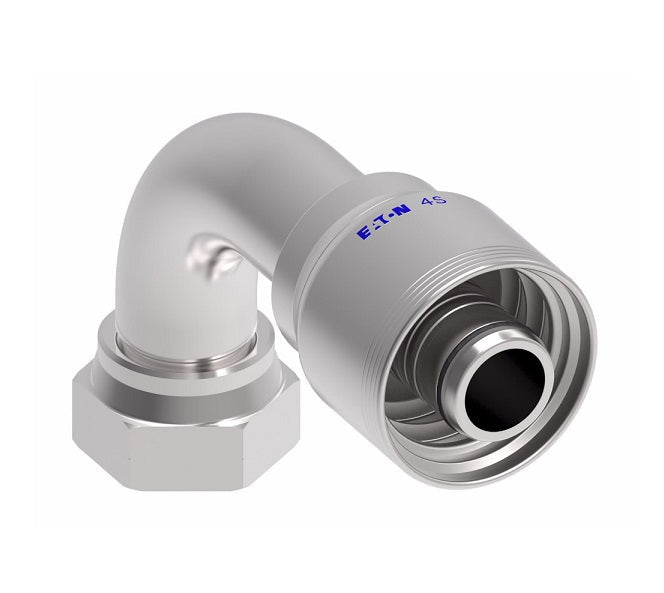

4S20BFB16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel
4S20BFB16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel
4S20BFB16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel
4S20BFB16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel

4S20BFB16 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -20 Female BSPP Swivel x -16 Hose Barb | Steel

$240.42 - $240.42
$240.42
$240.42 - $240.42
$240.42

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S20BFB16 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female BSPP, 1in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parellel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4S8BFB8 -08 - -08 G 1/2" 2.52" 1.35" 0.38" 1.48" 1.06"
4S12BFB12 -12 19 -12 G 3/4" 4.17" 2.74" 0.56" 2.24" 32mm
4S16BFB12 -16 19 -12 G 1" 4.17" 2.74" 0.56" 2.68" 41mm
4S16BFB16 -16 25 -16 G 1" 4.94" 3.38" 0.76" 2.68" 41mm
4S20BFB16 -20 25 -16 G 1-1/4" 4.94" 3.38" 0.76" 3.11" 50mm
4S20BFB20 -20 31 -20 G 1-1/4" 5.71" 3.74" 0.99" 3.11" 50mm
4S24BFB24 -24 38 -24 G 1-1/2" 8.07" 5.00" 1.22" 3.88" 55mm
4S32BFA32 -32 51 -32 G 2" 9.67" 6.60" 1.66" 4.93" 70mm
