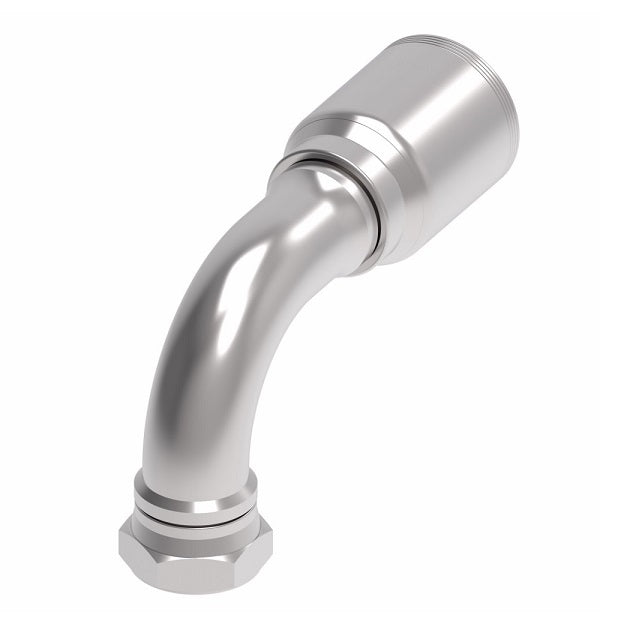

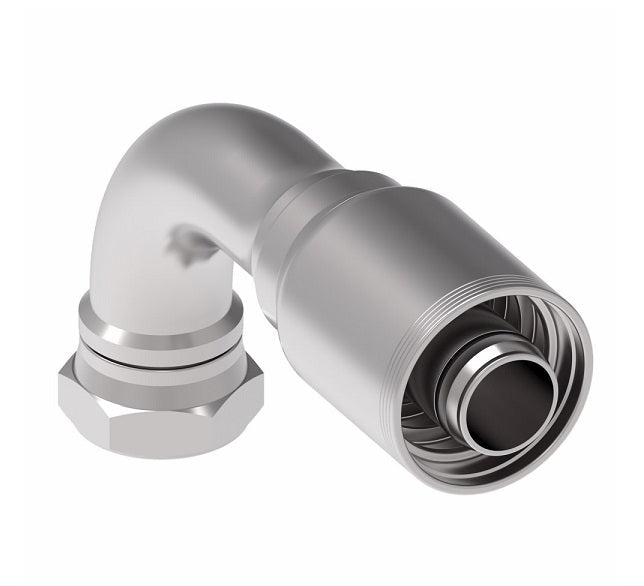

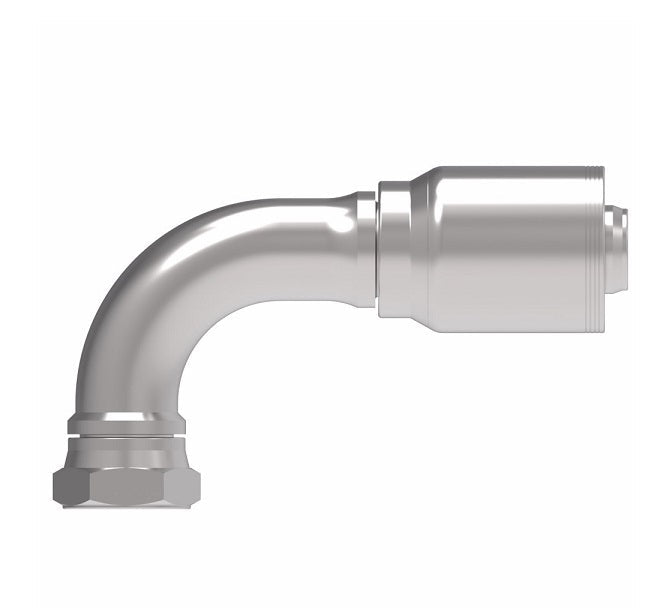

4S24BFB24 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel
4S24BFB24 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel
4S24BFB24 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel

4S24BFB24 Aeroquip by Danfoss | 4 Wire 4S Female BSPP Swivel 60° Cone Seat 90° Elbow (BFB) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel

$170.24 - $170.24
$170.24
$170.24 - $170.24
$170.24

Aeroquip® by Danfoss
4 Wire 4S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S24BFB24 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Female BSPP, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parellel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
4S8BFB8 -08 - -08 G 1/2" 2.52" 1.35" 0.38" 1.48" 1.06"
4S12BFB12 -12 19 -12 G 3/4" 4.17" 2.74" 0.56" 2.24" 32mm
4S16BFB12 -16 19 -12 G 1" 4.17" 2.74" 0.56" 2.68" 41mm
4S16BFB16 -16 25 -16 G 1" 4.94" 3.38" 0.76" 2.68" 41mm
4S20BFB16 -20 25 -16 G 1-1/4" 4.94" 3.38" 0.76" 3.11" 50mm
4S20BFB20 -20 31 -20 G 1-1/4" 5.71" 3.74" 0.99" 3.11" 50mm
4S24BFB24 -24 38 -24 G 1-1/2" 8.07" 5.00" 1.22" 3.88" 55mm
4S32BFA32 -32 51 -32 G 2" 9.67" 6.60" 1.66" 4.93" 70mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
