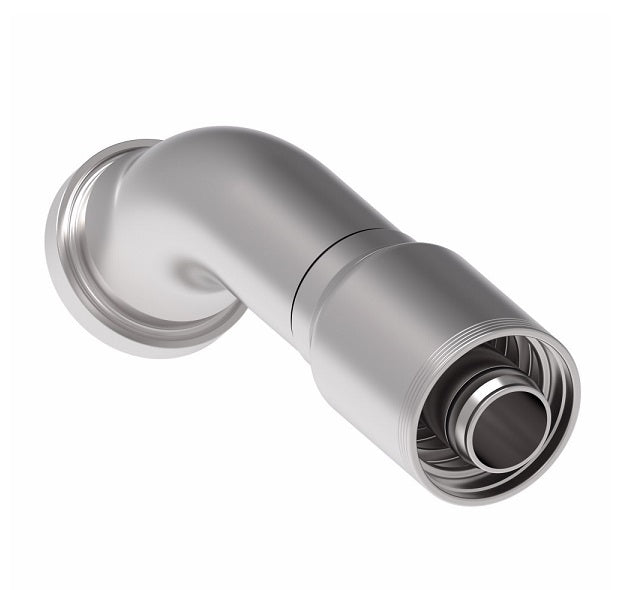

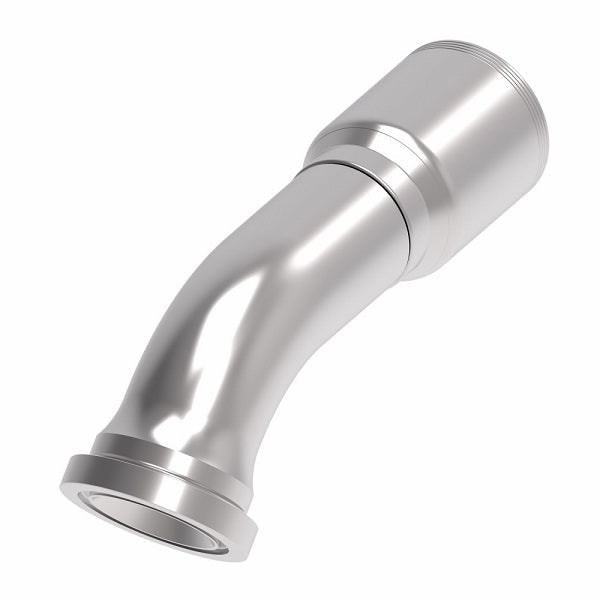

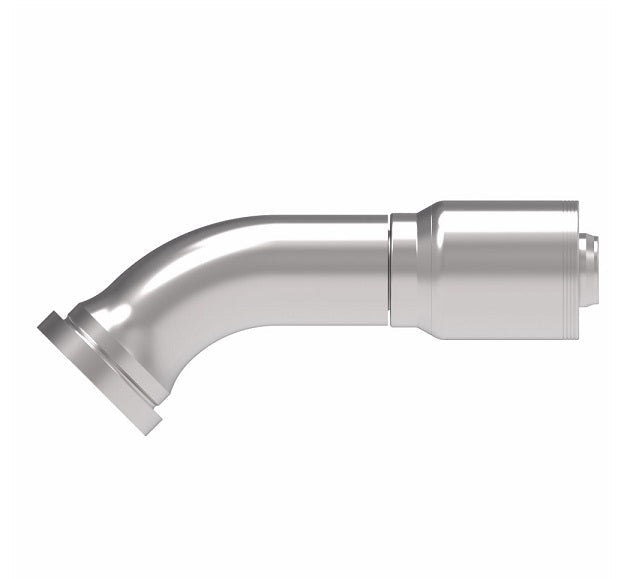

4S32FHA24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel
4S32FHA24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel
4S32FHA24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel

4S32FHA24 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel

$377.58 - $377.58
$377.58
$377.58 - $377.58
$377.58

Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FHA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 4S32FHA24 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 2in Code 62 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D EØ H
Dash Size DN Dash Size
4S8FHA8 -08 - -08 - - - - -
4S12FHA8 -12 - -08 - - - - -
4S12FHA12 -12 19 -12 1.63" 4.48" 3.06" 0.56" 1.06"
4S16FHA12 -16 19 -12 1.88" 5.04" 3.61" 0.56" 1.26"
4S12FHA16 -12 25 -16 1.63" 4.60" 3.04" 0.59" 1.06"
4S16FHA16 -16 25 -16 1.88" 5.15" 3.59" 0.76" 1.26"
4S16FHA16.028 -16 - -16 - - - - -
4S20FHA16 -20 25 -16 2.13" 5.91" 4.35" 0.76" 1.54"
4S20FHA20 -20 31 -20 2.13" 6.56" 4.39" 0.99" 1.54"
4S24FHA20 -24 31 -20 2.50" 7.21" 5.05" 0.99" 1.77"
4S24FHA24 -24 38 -24 2.50" 8.43" 5.36" 1.22" 1.77"
4S32FHA24 -32 38 -24 3.13" 9.88" 6.81" 1.22" 2.26"
4S32FHA32 -32 51 -32 3.13" 10.00" 6.93" 1.66" 2.26"
