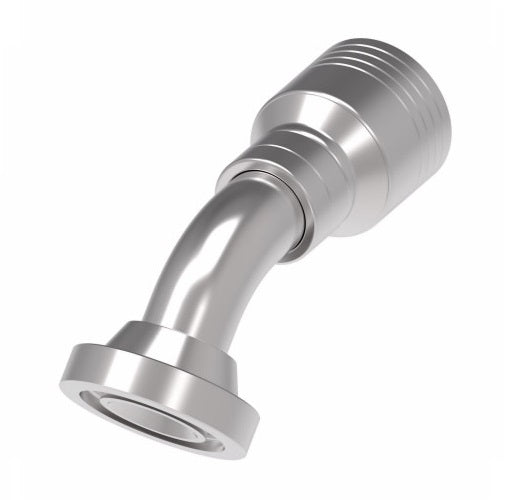

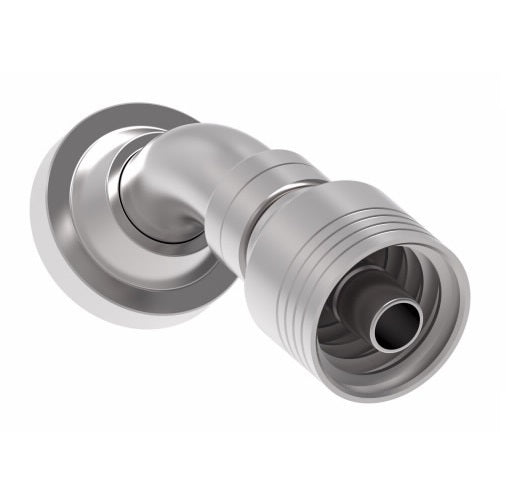

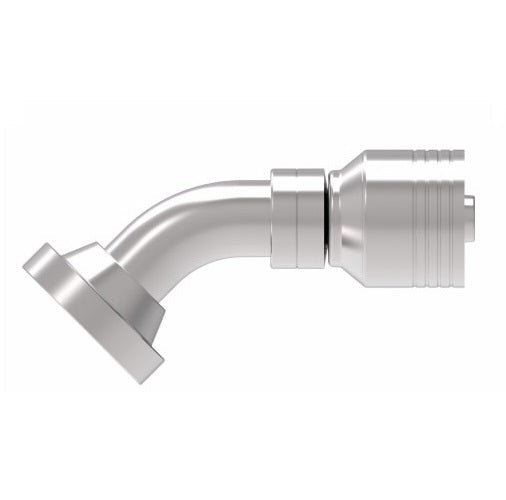

4S8FHA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -08 Code 62 Flange x -08 Hose Barb | Steel
4S8FHA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -08 Code 62 Flange x -08 Hose Barb | Steel | Pack of 10
4S8FHA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -08 Code 62 Flange x -08 Hose Barb | Steel | Pack of 10
4S8FHA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -08 Code 62 Flange x -08 Hose Barb | Steel

4S8FHA8 Aeroquip by Danfoss | 4 Wire 4S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -08 Code 62 Flange x -08 Hose Barb | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$704.60 - $704.60
$704.60
$704.60 - $704.60
$704.60

Aeroquip® by Danfoss
4 Wire 4S SAE Code 62 Flange Crimp Fitting (FHA) - 45° Elbow
Specifications for Variant SKU: 4S8FHA8 Danfoss | 10 |
Brand: Aeroquip
Shape (Orientation): Straight
Ends Configuration: 1/2in Code 62 Flange, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC525 Series  |   GH493 Series  |   FC636 Series  |   FC736 Series  |   FC500 Series  |   FC273B Series  |   GH506 Series  |   FC254 Series  |   EC810 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D EØ H
Dash Size DN Dash Size
4S8FHA8 -08 - -08 - - - - -
4S12FHA8 -12 - -08 - - - - -
4S12FHA12 -12 19 -12 1.63" 4.48" 3.06" 0.56" 1.06"
4S16FHA12 -16 19 -12 1.88" 5.04" 3.61" 0.56" 1.26"
4S12FHA16 -12 25 -16 1.63" 4.60" 3.04" 0.59" 1.06"
4S16FHA16 -16 25 -16 1.88" 5.15" 3.59" 0.76" 1.26"
4S16FHA16.028 -16 - -16 - - - - -
4S20FHA16 -20 25 -16 2.13" 5.91" 4.35" 0.76" 1.54"
4S20FHA20 -20 31 -20 2.13" 6.56" 4.39" 0.99" 1.54"
4S24FHA20 -24 31 -20 2.50" 7.21" 5.05" 0.99" 1.77"
4S24FHA24 -24 38 -24 2.50" 8.43" 5.36" 1.22" 1.77"
4S32FHA24 -32 38 -24 3.13" 9.88" 6.81" 1.22" 2.26"
4S32FHA32 -32 51 -32 3.13" 10.00" 6.93" 1.66" 2.26"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
