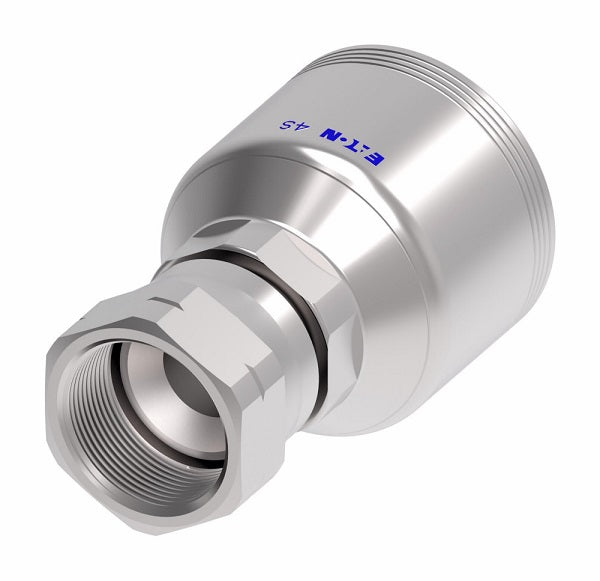

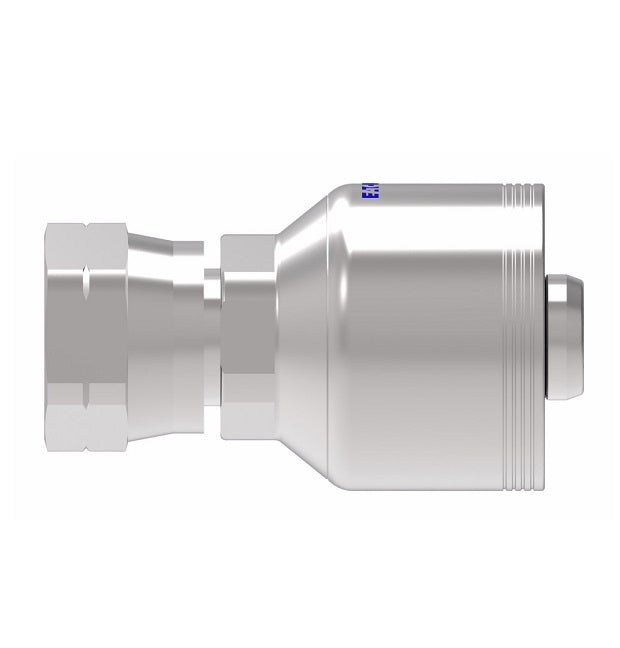

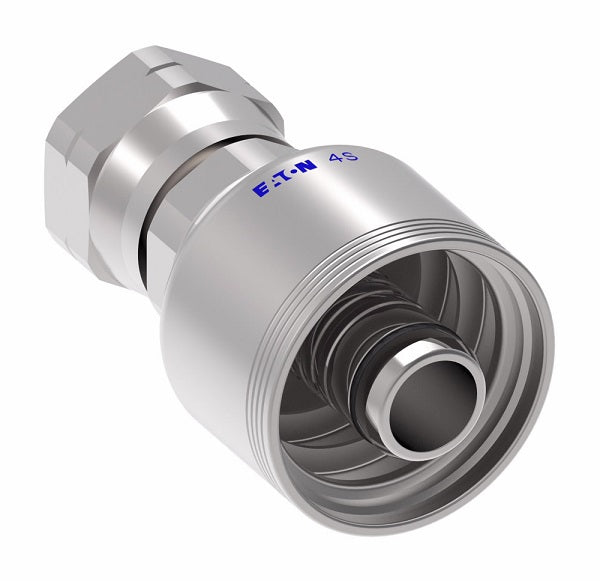

4SA12FS12 Aeroquip by Danfoss | 4 Wire 4S Female SAE 45° Flare Swivel (FS) Crimp Fitting | -12 Female SAE 45° Flare Swivel x -12 Hose Barb | Steel

4SA12FS12 Aeroquip by Danfoss | 4 Wire 4S Female SAE 45° Flare Swivel (FS) Crimp Fitting | -12 Female SAE 45° Flare Swivel x -12 Hose Barb | Steel

Name: 4SA12FS12 Aeroquip by Danfoss | 4 Wire 4S Female SAE 45° Flare Swivel (FS) Crimp Fitting | -12 Female SAE 45° Flare Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4SA12FS12 Danfoss
Price: 86.24 USD
Availability: InStock

$86.24 - $86.24

$86.24

$86.24 - $86.24

$86.24

Aeroquip® by Danfoss
4 Wire 4S Female SAE 45° Flare Swivel Crimp Fitting (FS) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 4SA12FS12 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female SAE 45 Flare, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	EC525 Series \| GH493 Series \| FC636 Series \| FC736 Series \| FC500 Series \| FC273B Series \| GH506 Series \| FC254 Series \| EC810 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1	Hex 2
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1	Hex 2
4SA4FS6	-04	-	-06	7/16-20	2.03"	1.19"	0.19"	9/16"	11/16"
4SA6FS6	-06	-	-06	5/8-18	2.15"	1.31"	0.26"	3/4"	11/16"
4SA10FS8	-10	-	-08	7/8-14	2.54"	1.47"	0.38"	1"	13/16"
4SA12FS12	-12	19	-12	1-1/16-12	2.42"	1.00"	0.56"	1-1/4"	1-3/16"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
