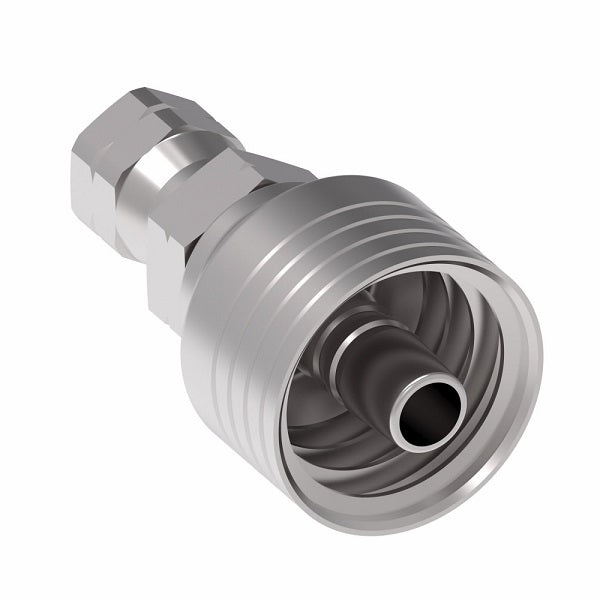

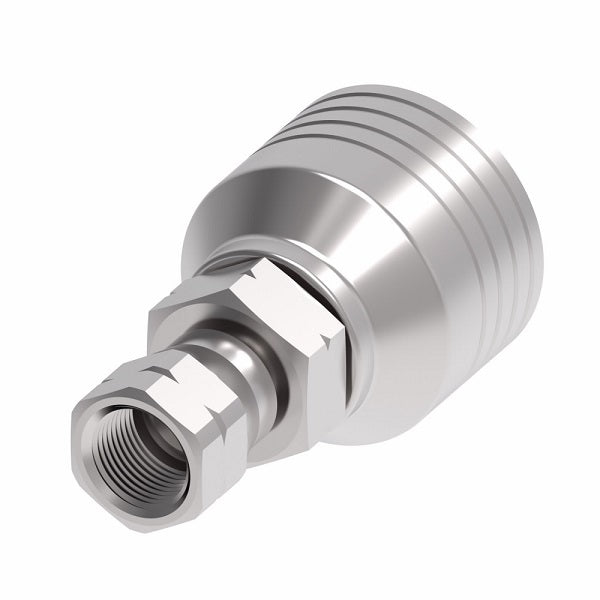

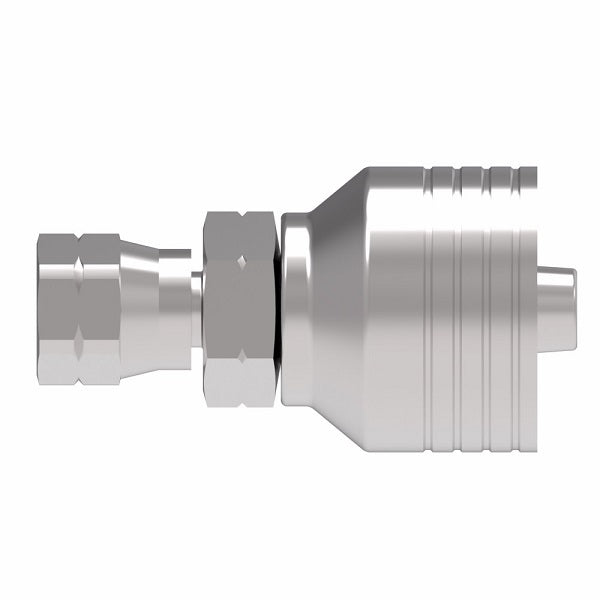

4SA6FS6 Aeroquip by Danfoss | 4 Wire 4S Female SAE 45° Swivel (FS) Crimp Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel

4SA6FS6 Aeroquip by Danfoss | 4 Wire 4S Female SAE 45° Swivel (FS) Crimp Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel

Name: 4SA6FS6 Aeroquip by Danfoss | 4 Wire 4S Female SAE 45° Swivel (FS) Crimp Fitting | -06 Female SAE 45° Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 4SA6FS6 Danfoss
Price: 25.52 USD
Availability: InStock

$25.52 - $25.52

$25.52

$25.52 - $25.52

$25.52

Aeroquip® by Danfoss
4 Wire 4S Female SAE 45° Flare Swivel Crimp Fitting (FS) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 4SA6FS6 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female SAE 45, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	Hex 1	Hex 2
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	Hex 1	Hex 2
4SA4FS6	-04	-	-06	7/16-20	2.03"	1.19"	0.19"	9/16"	11/16"
4SA6FS6	-06	-	-06	5/8-18	2.15"	1.31"	0.26"	3/4"	11/16"
4SA10FS8	-10	-	-08	7/8-14	2.54"	1.47"	0.38"	1"	13/16"
4SA12FS12	-12	19	-12	1-1/16-12	2.42"	1.00"	0.56"	1-1/4"	1-3/16"
