4SH62-24x24 Couplamatic Grip Crimp 4SH Series Coupling - Code 62 Split Flange - 90° Bend - 1-1/2" Hose ID - 1-1/2" Flange Size

4SH62-24x24 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/2" Hose ID x 1-1/2" Split Flange Size | Code 62 | 90° Elbow | Trivalent Zinc Plating

Save $11.67 Save $11.67
$105.06
$105.06 - $105.06
$105.06
$93.39
$93.39 - $93.39
$93.39

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - Code 62 Split Flange - 90° Bend
Specifications for Variant SKU: 4SH62-24x24 Couplamatic
Series: 4SH Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/2in Code 62 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

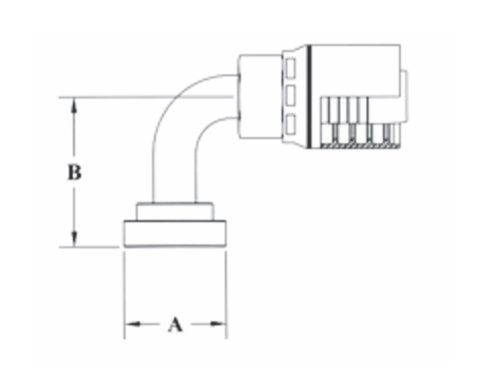

    Part Number Hose ID Flange Size A-DiaInches B-DropInches Cross Reference Part Numbers
    Parker 73
    4SH62-20x20 1-1/4" 1-1/4" 2.12" 3.25" 16N73-20-20
    4SH62-24x24 1-1/2" 1-1/2" 2.50" 3.75" 16N73-24-24
    4SH62-32x32 2" 2" 3.12" 5.38" 16N73-32-32

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
