4SH62-32x32 Couplamatic Grip Crimp 4SH Series Coupling - Code 62 Split Flange - 90° Bend - 2" Hose ID - 2" Flange Size

4SH62-32x32 by Couplamatic | Grip Crimp 4SH Series Coupling | 2" Hose ID x 2" Split Flange Size | Code 62 | 90° Elbow | Trivalent Zinc Plating

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - Code 62 Split Flange - 90° Bend
Specifications for Variant SKU: 4SH62-32x32 Couplamatic
Series: 4SH Series
Shape (Orientation): 90 Degree
Ends Configuration: 2in Code 62 Flange, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
4SH Series — Extreme Pressure No-Skive

4SH62 Grip Crimp 4SH Series Coupling — Code 62 Split Flange, 90° Elbow

4SH62 is the Code 62 Split Flange, 90° Elbow configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.

1

What are the main product features?
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
  • Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
  • Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2

Which sizes are available?

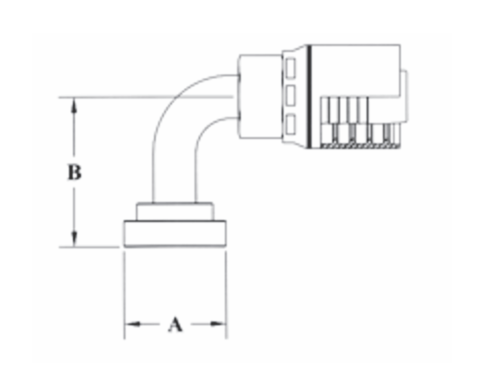

Part Number Hose ID Flange Size A-DiaInches B-DropInches Cross Reference Part Numbers
Parker 73
4SH62-20x20 1-1/4" 1-1/4" 2.12" 3.25" 16N73-20-20
4SH62-24x24 1-1/2" 1-1/2" 2.50" 3.75" 16N73-24-24
4SH62-32x32 2" 2" 3.12" 5.38" 16N73-32-32
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
