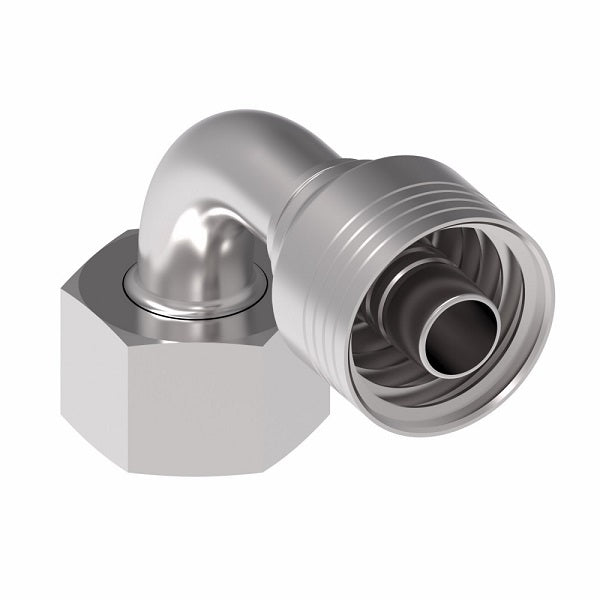

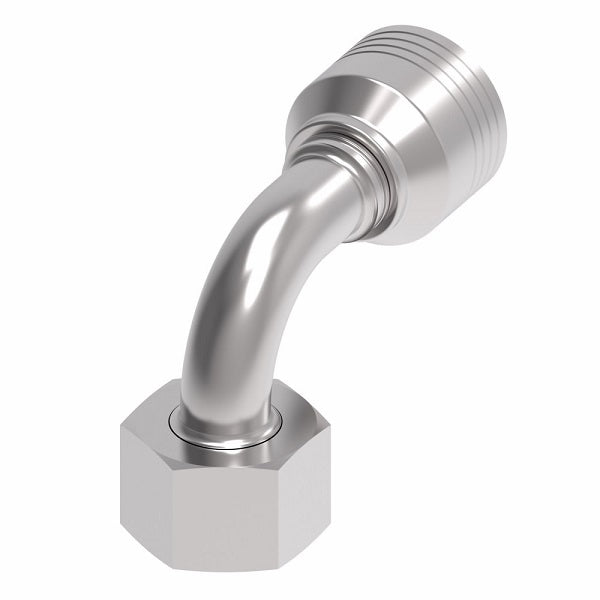

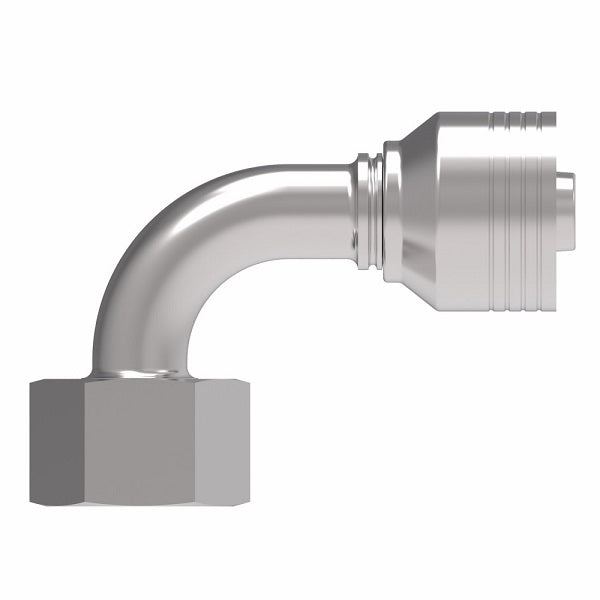

4S16DSB10 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S20 Female DKO/DIN x -10 Hose Barb | Steel | Pack of 10

4S16DSB10 Aeroquip by Danfoss | 4 Wire 4S DKO Female Swivel, Heavy Duty, 90° Elbow (DSB) Crimp Fitting | S20 Female DKO/DIN x -10 Hose Barb | Steel | Pack of 10

$794.39 - $794.39

$794.39

$794.39 - $794.39

$794.39

Aeroquip® by Danfoss
4 Wire 4S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSB) - 90° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 4S16DSB10 Danfoss \| 10 \|
Shape (Orientation):	90 Degree
Ends Configuration:	S20 Female DIN, 5/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC636 Series \| FC736 Series \| GH493 Series \| EC525 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
4S8DSB6	12	-	-06	M20 x 1.5	2.20"	1.36"	0.26"	1.39"	0.94"
4S10DSB6	14	-	-06	M22 x 1.5	2.35"	1.52"	0.26"	1.65"	1.06"
4S12DSB8	16	-	-08	M24 x 1.5	3.06"	1.89"	0.38"	1.78"	1.18"
4S16DSB10	20	-	-10	M30 x 2	3.23"	2.07"	0.50"	2.05"	1.42"
4S20DSB12	25	19	-12	M36X2	4.09"	2.67"	0.56"	2.56"	46mm
4S25DSB12	30	19	-12	M42X2	4.83"	3.40"	0.56"	2.99"	50mm
4S25DSB16	30	25	-16	M42X2	4.90"	3.34"	0.76"	2.99"	50mm
4S32DSB16	38	25	-16	M52X2	5.38"	3.82"	0.76"	3.50"	60mm
4S32DSB20	38	31	-20	M52X2	6.02"	3.86"	0.99"	3.50"	60mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
