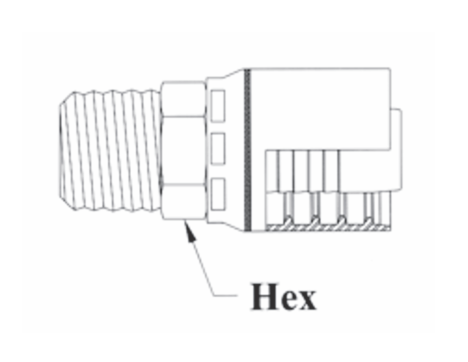

4SH01-20x20 Couplamatic Grip Crimp 4SH Series Coupling - NPTF - Male Solid - 1-1/4" Hose ID - 1-1/4-11-1/2 Thread Size

4SH01-20x20 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/4" Hose ID x 1-1/4-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $19.56 Save $19.56
$48.90
$48.90 - $48.90
$48.90
$29.34
$29.34 - $29.34
$29.34

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - NPTF - Male Solid
Specifications for Variant SKU: 4SH01-20x20 Couplamatic
Series: 4SH Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male NPTF, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
Description:
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•
    Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
    Parker 73
    4SH01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 10173-20-20
    4SH01-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2" 10173-24-24
    4SH01-32x32 2" 2" 2-11-1/2 2-1/2" 10173-32-32

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
