4SH01-24x24 Couplamatic Grip Crimp 4SH Series Coupling - NPTF - Male Solid - 1-1/2" Hose ID - 1-1/2-11-1/2 Thread Size

4SH01-24x24 by Couplamatic | Grip Crimp 4SH Series Coupling | 1-1/2" Hose ID x 1-1/2-11-1/2 Thread Size NPTF Male Solid | Straight | Trivalent Zinc Plating

Save $32.23 Save $32.23
$80.57
$80.57 - $80.57
$80.57
$48.34
$48.34 - $48.34
$48.34

Couplamatic Systems Inc.
Grip Crimp 4SH Series - No-Skive Couplings - NPTF - Male Solid
Specifications for Variant SKU: 4SH01-24x24 Couplamatic
Series: 4SH Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPTF, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 4SH Series
4SH Series — Extreme Pressure No-Skive

4SH01 Grip Crimp 4SH Series Coupling — NPTF Male Solid, Straight

4SH01 is the NPTF Male Solid, Straight configuration of the Grip Crimp 4SH Series, terminating 1-1/4" through 2" 4SH extreme pressure spiral hose and CS-Flex 5 reduced bend radius hose.

1

What are the main product features?
  • The 4SH Series Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • NO SKIVE REQUIRED — terminates 4SH spiral hose with the cover left intact.
  • Extreme pressure service — matched to 4SH hose in 1-1/4" through 2".
  • Also fits CS-Flex 5 — the 1-1/4" and 1-1/2" high pressure reduced bend radius hose.
2

Which sizes are available?

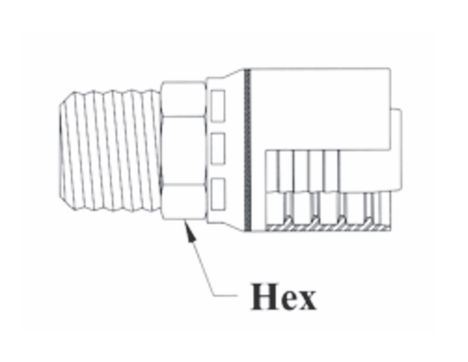

Part Number Hose ID Pipe Size Thread Size Hex Size Cross Reference Part Numbers
Parker 73
4SH01-20x20 1-1/4" 1-1/4" 1-1/4-11-1/2 1-11/16" 10173-20-20
4SH01-24x24 1-1/2" 1-1/2" 1-1/2-11-1/2 2" 10173-24-24
4SH01-32x32 2" 2" 2-11-1/2 2-1/2" 10173-32-32
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
