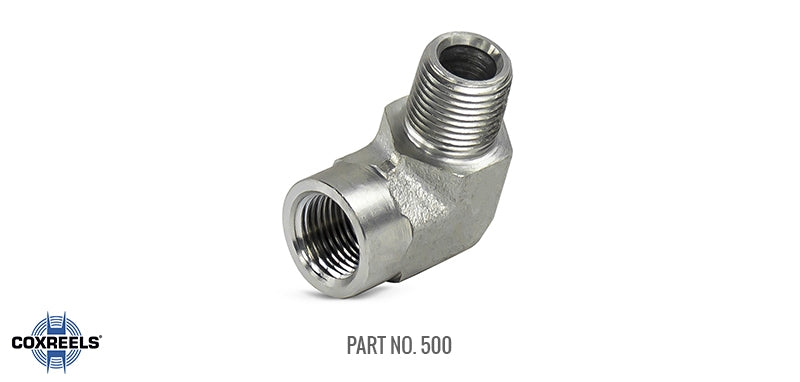

500 by Coxreels | 3,000 PSI 90° Inlet Elbow for Hose Reels | 3/8" MNPT x FNPT | Steel

500 by Coxreels | 3,000 PSI 90° Inlet Elbow for Hose Reels | 3/8" MNPT x FNPT | Steel

Save $10.10 Save $10.10
$28.45
$28.45 - $28.45
$28.45
$18.35
$18.35 - $18.35
$18.35
This Item has a 3 Week Lead Time.
Specifications for Variant SKU: 500 Cox Reels
Series: Inlet Elbow Series
Material(s): Steel
Compatible with the following Series: C Series  |   E Series  |   EN Series  |   EZ-E Series  |   EZ-EN Series  |   EZ-SG Series  |   EZ-T Series  |   P Series  |   S Series  |   SG Series  |   SH Series  |   T Series

Coxreels 90° Elbows

Male x female NPT 90° elbows for making reel inlet connections at an angle.

What are the main product features?
  • Brass elbows for low pressure (300 PSI) reels
  • Steel elbows for medium and high pressure reels
  • Male x female NPT

Which part numbers are available?
Part Number Size Material Pressure Class Max PSI
208 3/8" Brass LP 300
222 1/2" Brass LP 300
385 3/4" Brass LP 300
500 3/8" Steel MP 3,000
616 1/4" Steel HP 5,000
617 3/8" Steel HP 5,000
1671 1/2" Steel MP 3,000
6088 1/4" Brass LP 300
15014 3/4" Steel MP 1,250

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
