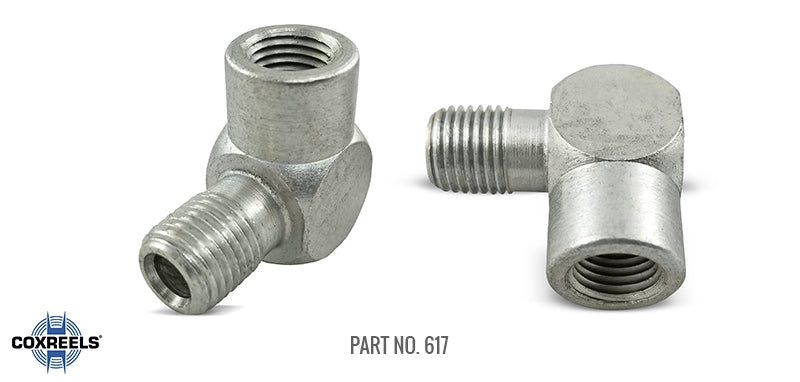

617 by Coxreels | 5,000 PSI 90° Inlet Elbow for Hose Reels | 3/8" MNPT x FNPT | Steel

Name: 617 by Coxreels | 5,000 PSI 90° Inlet Elbow for Hose Reels | 3/8" MNPT x FNPT | Steel
Brand: Coxreels
SKU: 617 Cox Reels
Price: 18.83 USD
Availability: InStock

Save $10.23

$29.06

$29.06 - $29.06

$29.06

$18.83

$18.83 - $18.83

$18.83

This Item has a 3 Week Lead Time.

Specifications for Variant SKU: 617 Cox Reels
Series:	Inlet Elbow Series
Material(s):	Steel
Compatible with the following Series:	C Series \| EN Series \| EZ-E Series \| EZ-EN Series \| EZ-P Series \| EZ-SH Series \| EZ-T Series \| MPD Series \| P Series \| S Series \| SG Series \| T Series

Coxreels 90° Elbows

Male x female NPT 90° elbows for making reel inlet connections at an angle.

What are the main product features?

Brass elbows for low pressure (300 PSI) reels
Steel elbows for medium and high pressure reels
Male x female NPT

Which part numbers are available?

Part Number	Size	Material	Pressure Class	Max PSI
208	3/8"	Brass	LP	300
222	1/2"	Brass	LP	300
385	3/4"	Brass	LP	300
500	3/8"	Steel	MP	3,000
616	1/4"	Steel	HP	5,000
617	3/8"	Steel	HP	5,000
1671	1/2"	Steel	MP	3,000
6088	1/4"	Brass	LP	300
15014	3/4"	Steel	MP	1,250

Cox Reels

Family-owned for over 90 years and now in its third generation, Coxreels builds American-made hose, cord, and cable reels using in-house engineering, CNC machining, and robotic welding. Known for quality, durability, and the industry's widest variety, it's a reel line we trust and proudly carry for commercial and industrial use, backed by USA-based support.
