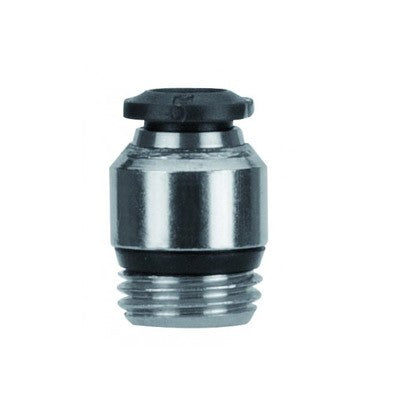

50010N-3-M5 AIGNEP | 50N Series | Straight Male Internal Hex | 3mm Tube x M5 Male | Pack of 10

50010N-3-M5 by AIGNEP | 50N Series | Male Internal Hex | 3mm Tube x M5 Male | Straight | Pack of 10

Save $0.18

$17.63

$17.63 - $17.63

$17.63

$17.45

$17.45 - $17.45

$17.45

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 50010N-3-M5 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Technical Characteristics:
Pressure Rating:	Vacuum ~ 290 PSI	Temperatures Rating:	-4º F ~ 176º F
Media:	• Compressed Air • Vacuum • Water • Steam (FKM Required)	Application:	• Pneumatic Automation • Automotive • Textile, Packaging • Compressed Air Circuit • Vacuum
Tubing Compatibility:	• Nylon 6 - 11 -12 • Polyethylene • Polyurethane (“98 Shore A for best result) • PTFE • FEP	Component Parts and Materials:	• 1 Composite Release Collet • NBR Thread Sea • Nickel Plated Brass Sleeve • 303 Stainless Steel Gripper • Technopolymer Safety Ring • NBR Molded Seal • Safety Ring • NBR Seal • Nickel Plated Thread Brass Body

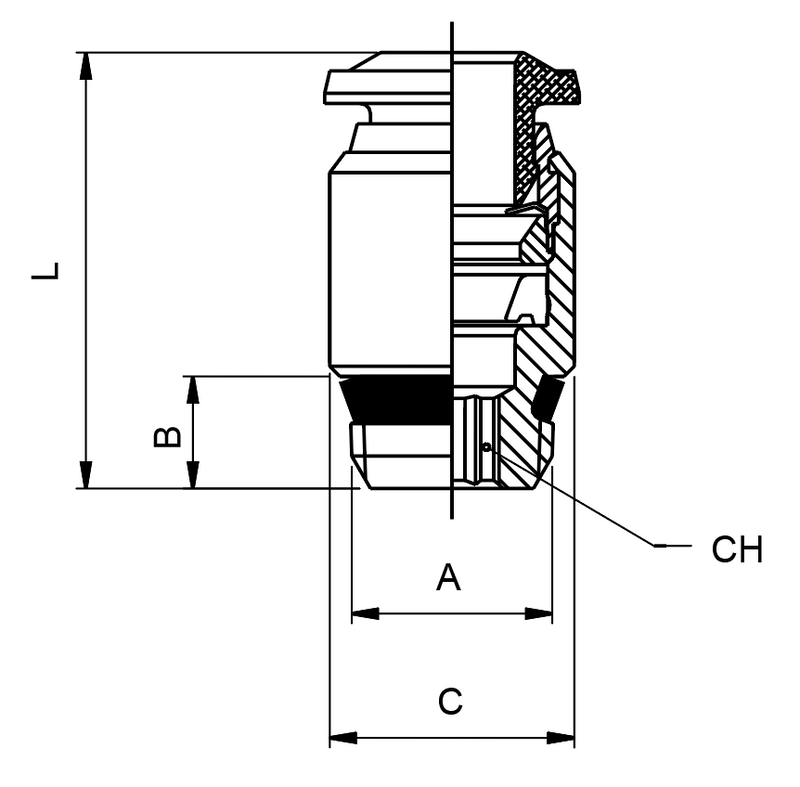

Part Number	Tube	A	B	C	L	CH1
50010N-3-M5	3 mm	M5	0.157" (4 mm)	0.315" (8 mm)	0.748" (19 mm)	0.098" (2.50 mm)
50010N-4-M7x1	4 mm	M7x1	0.197" (5 mm)	0.394" (10 mm)	0.827" (21 mm)	0.098" (2.50)
50010N-4-M5	4 mm	M5	0.157" (4 mm)	0.394" (10 mm)	0.768" (19.50 mm)	0.098" (2.50 mm)
50010N-4-1/8	4 mm	1/8"	0.217" (5.50 mm)	0.433" (11 mm)	0.709" (18 mm)	0.118" (3 mm)
50010N-6-1/8	6 mm	1/8"	0.217" (5.50 mm)	0.472" (12 mm)	0.867" (21.50 mm)	0.157" (4 mm)
50010N-6-M5	6 mm	M5	0.157" (4 mm)	0.472" (12 mm)	0.472" (24.50 mm)	0.098" (2.50 mm)
50010N-6-1/4	6 mm	1/4"	0.276" (7 mm)	0.551" (14 mm)	0.827" (21 mm)	0.157" (4 mm)
50010N-8-1/8	8 mm	1/8"	0.217" (5.50 mm)	0.551" (14 mm)	0.984" (22 mm)	0.196" (5 mm)
50010N-8-1/4	8 mm	1/4"	0.276" (7 mm)	0.551" (14 mm)	0.886" (22.50 mm)	0.236" (6 mm)

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
