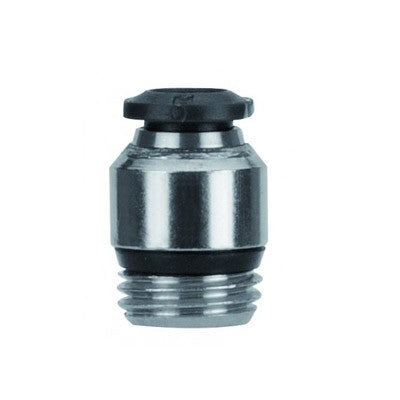

50010N-4-1/8 by AIGNEP | 50N Series | Male Internal Hex | 4mm Tube x 1/8" Male | Straight | Pack of 10

Save $1.14 Save $1.14
Original price $11.41
Original price $11.41 - Original price $11.41
Original price $11.41
Current price $10.27
$10.27 - $10.27
Current price $10.27

Package Quantity: 10 ea

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 50010N-4-1/8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Technical Characteristics:
Pressure Rating: Vacuum ~ 290 PSI Temperatures Rating: -4º F ~ 176º F
Media: • Compressed Air
• Vacuum
• Water
• Steam (FKM Required)
Application: • Pneumatic Automation
• Automotive
• Textile, Packaging
• Compressed Air Circuit
• Vacuum
Tubing Compatibility: • Nylon 6 - 11 -12
• Polyethylene
• Polyurethane (“98 Shore A for best result)
• PTFE
• FEP
Component Parts and Materials: • 1 Composite Release Collet
• NBR Thread Sea
• Nickel Plated Brass Sleeve
• 303 Stainless Steel Gripper
• Technopolymer Safety Ring
• NBR Molded Seal
• Safety Ring
• NBR Seal
• Nickel Plated Thread Brass Body

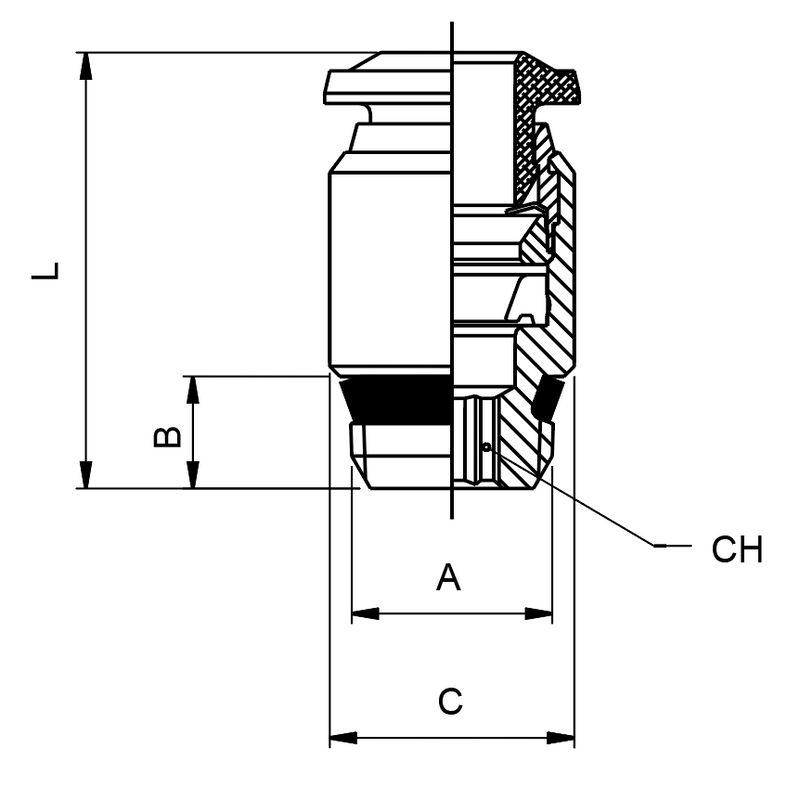

Part Number Tube A B C L CH1
50010N-3-M5 3 mm M5 0.157" (4 mm) 0.315" (8 mm) 0.748" (19 mm) 0.098" (2.50 mm)
50010N-4-M7x1 4 mm M7x1 0.197" (5 mm) 0.394" (10 mm) 0.827" (21 mm) 0.098" (2.50)
50010N-4-M5 4 mm M5 0.157" (4 mm) 0.394" (10 mm) 0.768" (19.50 mm) 0.098" (2.50 mm)
50010N-4-1/8 4 mm 1/8" 0.217" (5.50 mm) 0.433" (11 mm) 0.709" (18 mm) 0.118" (3 mm)
50010N-6-1/8 6 mm 1/8" 0.217" (5.50 mm) 0.472" (12 mm) 0.867" (21.50 mm) 0.157" (4 mm)
50010N-6-M5 6 mm M5 0.157" (4 mm) 0.472" (12 mm) 0.472" (24.50 mm) 0.098" (2.50 mm)
50010N-6-1/4 6 mm 1/4" 0.276" (7 mm) 0.551" (14 mm) 0.827" (21 mm) 0.157" (4 mm)
50010N-8-1/8 8 mm 1/8" 0.217" (5.50 mm) 0.551" (14 mm) 0.984" (22 mm) 0.196" (5 mm)
50010N-8-1/4 8 mm 1/4" 0.276" (7 mm) 0.551" (14 mm) 0.886" (22.50 mm) 0.236" (6 mm)
