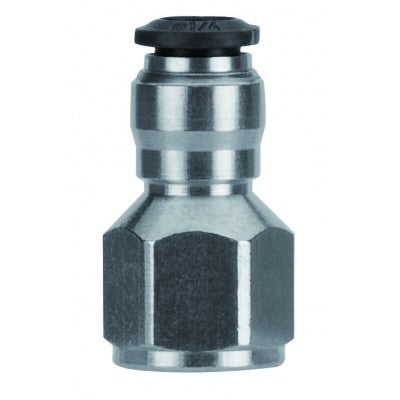

50030N-6-1/8" AIGNEP | 50N Series | Straight Female Tube Fitting | 6mm Tube x 1/8" BSPP Female | Pack of 10

50030N-6-1/8 by AIGNEP | 50N Series | Female Tube Fitting | 6mm Tube x 1/8" BSPP Female | Straight | Pack of 10

Save $0.18

$17.19

$17.19 - $17.19

$17.19

$17.01

$17.01 - $17.01

$17.01

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 50030N-6-1/8 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	6mm Push-to-Connect, 1/8in Female BSPP
Material(s):	Nickel-Plated Brass

Straight Female

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP

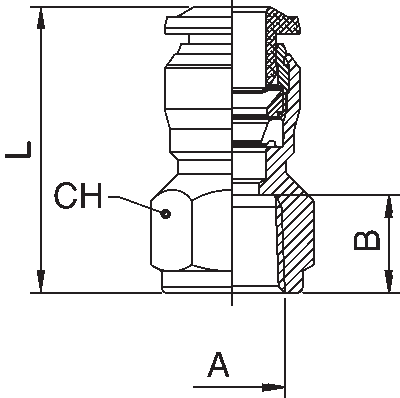

Product Number	Tube	Thread Type	Seal	A	B	L	CH
50030N-3-M5	3 mm	BSPP	NBR	M5	5.5 mm	18.5 mm	9 mm
50030N-4-M5	4 mm	BSPP	NBR	M5	5.5 mm	21 mm	11 mm
50030N-4-1/8	4 mm	BSPP	NBR	1/8"	8.5 mm	24 mm	13 mm
50030N-4-1/4	4 mm	BSPP	NBR	1/4"	11 mm	27.5 mm	16 mm
50030N-5-1/8	5 mm	BSPP	NBR	1/8"	8.5 mm	26.5 mm	13 mm
50030N-6-1/8	6 mm	BSPP	NBR	1/8"	8.5 mm	26 mm	13 mm
50030N-6-1/4	6 mm	BSPP	NBR	1/4"	11 mm	29.5 mm	16 mm
50030N-8-1/8	8 mm	BSPP	NBR	1/8"	8.5 mm	27 mm	15 mm
50030N-8-1/4	8 mm	BSPP	NBR	1/4"	11 mm	29.5 mm	17 mm
50030N-8-3/8	8 mm	BSPP	NBR	3/8"	12 mm	32 mm	19 mm
50030N-10-1/4	10 mm	BSPP	NBR	1/4"	11 mm	32 mm	18 mm
50030N-10-3/8	10 mm	BSPP	NBR	3/8"	12 mm	33.5 mm	19 mm
50030N-10-1/2	10 mm	BSPP	NBR	1/2"	15 mm	39 mm	24 mm
50030N-12-3/8	12 mm	BSPP	NBR	3/8"	12 mm	36 mm	21 mm
50030N-12-1/2	12 mm	BSPP	NBR	1/2"	15 mm	41 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
