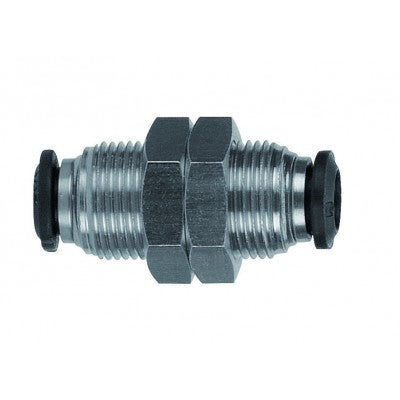

50050N-3 AIGNEP | 50N Series | Bulkhead Union | 3mm Tube | Pack of 10

50050N-3 by AIGNEP | 50N Series | Bulkhead Union | 3mm Tube | Pack of 10

Save $14.68

$81.48

$81.48 - $81.48

$81.48

$66.80

$66.80 - $66.80

$66.80

Package Quantity: 10 ea

Specifications for Variant SKU: 50050N-3 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	3mm Push-to-Connect, 3mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Bulkhead Union

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR

Product Number	Tube	M	CH	L	Amax
50050N-3	3 mm	M10X1	14 mm	26 mm	.195 (5)
50050N-4	4 mm	M12X1	17 mm	31.5 mm	.273 (7)
50050N-5	5 mm	M14X1	17 mm	33 mm	.273 (7)
50050N-6	6 mm	M14X1	17 mm	35 mm	.371 (9.5)
50050N-8	8 mm	M16X1	19 mm	37 mm	.413 (10.5)
50050N-10	10 mm	M20X1	24 mm	43 mm	.492 (12.5)
50050N-12	12 mm	M22X1	26 mm	48 mm	.644 (16.5)
50050N-14	14 mm	M23 x 1	27 mm	49 mm	.644 (16.5)

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
