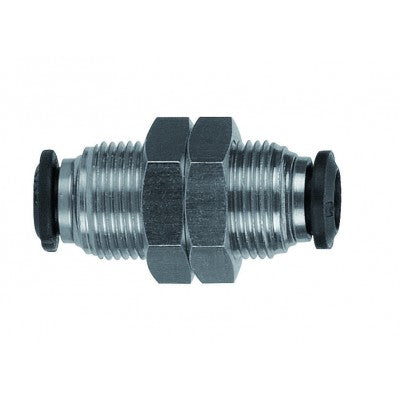

50050N-4 AIGNEP | 50N Series | Bulkhead Union | 4mm | Pack of 10
50050N-4 by AIGNEP | 50N Series | Bulkhead Union | 4mm | Pack of 10
50050N-4 AIGNEP | 50N Series | Bulkhead Union | 4mm | Pack of 10

50050N-4 by AIGNEP | 50N Series | Bulkhead Union | 4mm | Pack of 10

Save $22.59 Save $22.59
$56.47
$56.47 - $56.47
$56.47
$33.88
$33.88 - $33.88
$33.88

Package Quantity: 10 ea

Specifications for Variant SKU: 50050N-4 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Straight
Ends Configuration: 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Bulkhead Union

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR
Product Number Tube M CH L Amax
50050N-3 3 mm M10X1 14 mm 26 mm .195 (5)
50050N-4 4 mm M12X1 17 mm 31.5 mm .273 (7)
50050N-5 5 mm M14X1 17 mm 33 mm .273 (7)
50050N-6 6 mm M14X1 17 mm 35 mm .371 (9.5)
50050N-8 8 mm M16X1 19 mm 37 mm .413 (10.5)
50050N-10 10 mm M20X1 24 mm 43 mm .492 (12.5)
50050N-12 12 mm M22X1 26 mm 48 mm .644 (16.5)
50050N-14 14 mm M23 x 1 27 mm 49 mm .644 (16.5)
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
