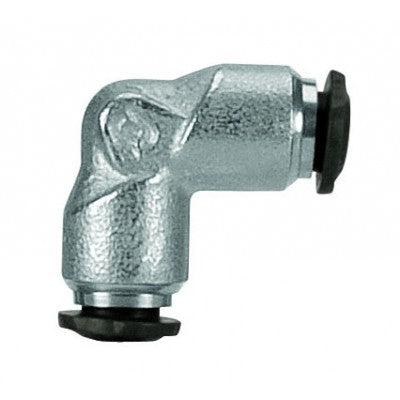

50130N-5 AIGNEP | 50N Series | Union 90° Elbow | 5mm Tube | Pack of 10

50130N-5 by AIGNEP | 50N Series | Union | 5mm Tube | 90° Elbow | Pack of 10

Save $19.26

$51.39

$51.39 - $51.39

$51.39

$32.13

$32.13 - $32.13

$32.13

Package Quantity: 10 ea

Specifications for Variant SKU: 50130N-5 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	90 Degree
Ends Configuration:	5mm Push-to-Connect, 5mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Union Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

Product Number	Tube	L	CH
50130N-3	3 mm	17 mm	9 mm
50130N-4	4 mm	17 mm	9 mm
50130N-5	5 mm	20 mm	11 mm
50130N-6	6 mm	20 mm	11 mm
50130N-8	8 mm	22.5 mm	13 mm
50130N-10	10 mm	26.5 mm	16 mm
50130N-12	12 mm	30.5 mm	19 mm
50130N-14	14 mm	32.5 mm	19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
