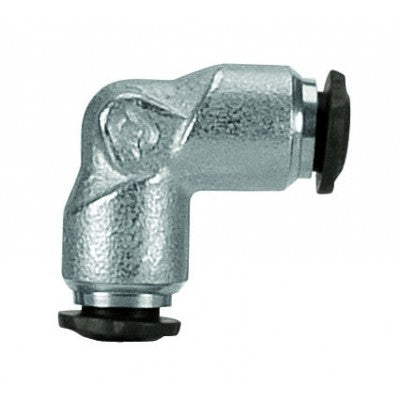

50130N-8 by AIGNEP | 50N Series | Union | 8mm Tube | 90° Elbow | Pack of 10

Save $19.36 Save $19.36
Original price $48.40
Original price $48.40 - Original price $48.40
Original price $48.40
Current price $29.04
$29.04 - $29.04
Current price $29.04

Package Quantity: 10 ea

Specifications for Variant SKU: 50130N-8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): 90 Degree
Ends Configuration: 8mm Push-to-Connect, 8mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass

Union Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Product Number Tube L CH
50130N-3 3 mm 17 mm 9 mm
50130N-4 4 mm 17 mm 9 mm
50130N-5 5 mm 20 mm 11 mm
50130N-6 6 mm 20 mm 11 mm
50130N-8 8 mm 22.5 mm 13 mm
50130N-10 10 mm 26.5 mm 16 mm
50130N-12 12 mm 30.5 mm 19 mm
50130N-14 14 mm 32.5 mm 19 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
