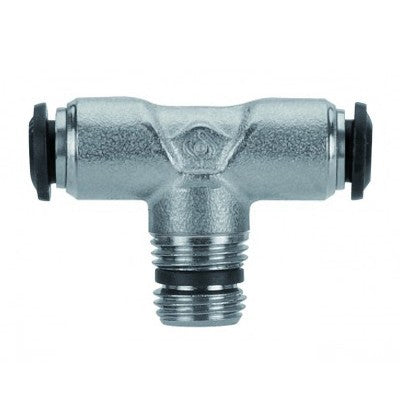

50200N-10-1/4" AIGNEP | 50N Series | Fixed Tee | 10mm Tube x 1/4" BSPT Male | Pack of 10

50200N-10-1/4 by AIGNEP | 50N Series | Fixed | 10mm Tube x 1/4" BSPT Male | Tee | Pack of 10

Save $0.46

$46.37

$46.37 - $46.37

$46.37

$45.91

$45.91 - $45.91

$45.91

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 50200N-10-1/4 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Tee
Ends Configuration:	10mm Push-to-Connect, 1/4in Male BSPT, 10mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Fixed Branch Tee - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR

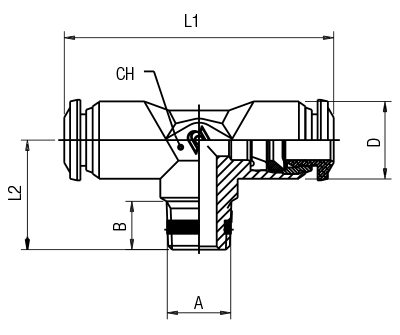

Product Number	Tube	A	B	L1	L2	CH	D
50200N-4-M5	4 mm	M5	5 mm	34 mm	15 mm	9 mm	10 mm
50200N-4-1/8	4 mm	1/8"	7.5 mm	34 mm	15.5 mm	9 mm	10 mm
50200N-5-1/8	5 mm	1/8"	7.5 mm	40 mm	17.5 mm	11 mm	12.5 mm
50200N-6-1/8	6 mm	1/8"	7.5 mm	42 mm	17.5 mm	11 mm	14 mm
50200N-8-1/8	8 mm	1/8"	7.5 mm	45 mm	19 mm	13 mm	14 mm
50200N-8-1/4	8 mm	1/4"	11 mm	45 mm	21.5 mm	13 mm	14 mm
50200N-10-1/4	10 mm	1/4"	11 mm	53 mm	24.5 mm	16 mm	17 mm
50200N-10-3/8	10 mm	3/8"	11.5 mm	53 mm	24 mm	16 mm	17 mm
50200N-12-1/4	12 mm	1/4"	11 mm	61 mm	28 mm	19 mm	21.5 mm
50200N-12-3/8	12 mm	3/8"	11.5 mm	61 mm	28 mm	19 mm	21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
