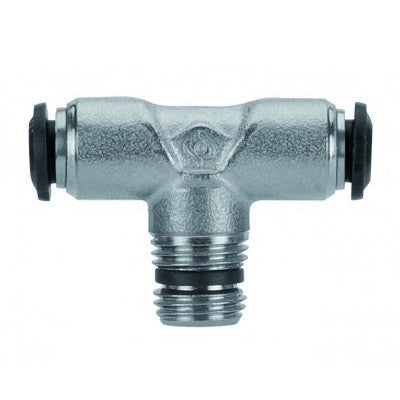

50200N-10-3/8" AIGNEP | 50N Series | Fixed Tee | 10mm Tube x 3/8" BSPT Male | Pack of 10
50200N-10-3/8 by AIGNEP | 50N Series | Fixed | 10mm Tube x 3/8" BSPT Male | Tee | Pack of 10
50200N-10-3/8" AIGNEP | 50N Series | Fixed Tee | 10mm Tube x 3/8" BSPT Male | Pack of 10

50200N-10-3/8 by AIGNEP | 50N Series | Fixed | 10mm Tube x 3/8" BSPT Male | Tee | Pack of 10

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Package Quantity: 10 ea

Specifications for Variant SKU: 50200N-10-3/8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Tee
Ends Configuration: 10mm Push-to-Connect, 3/8in Male BSPT, 10mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Fixed Branch Tee - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR

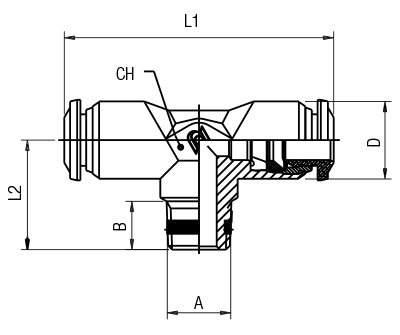

Product Number Tube A B L1 L2 CH D
50200N-4-M5 4 mm M5 5 mm 34 mm 15 mm 9 mm 10 mm
50200N-4-1/8 4 mm 1/8" 7.5 mm 34 mm 15.5 mm 9 mm 10 mm
50200N-5-1/8 5 mm 1/8" 7.5 mm 40 mm 17.5 mm 11 mm 12.5 mm
50200N-6-1/8 6 mm 1/8" 7.5 mm 42 mm 17.5 mm 11 mm 14 mm
50200N-8-1/8 8 mm 1/8" 7.5 mm 45 mm 19 mm 13 mm 14 mm
50200N-8-1/4 8 mm 1/4" 11 mm 45 mm 21.5 mm 13 mm 14 mm
50200N-10-1/4 10 mm 1/4" 11 mm 53 mm 24.5 mm 16 mm 17 mm
50200N-10-3/8 10 mm 3/8" 11.5 mm 53 mm 24 mm 16 mm 17 mm
50200N-12-1/4 12 mm 1/4" 11 mm 61 mm 28 mm 19 mm 21.5 mm
50200N-12-3/8 12 mm 3/8" 11.5 mm 61 mm 28 mm 19 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
