50230N-14 AIGNEP | 50N Series | Union Tee Composite | 14mm Tube | Pack of 10

50230N-14 by AIGNEP | 50N Series | Union Composite | 14mm Tube | Tee | Pack of 10

Save $0.82

$82.37

$82.37 - $82.37

$82.37

$81.55

$81.55 - $81.55

$81.55

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 50230N-14 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Tee
Ends Configuration:	14mm Push-to-Connect, 14mm Push-to-Connect, 14mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

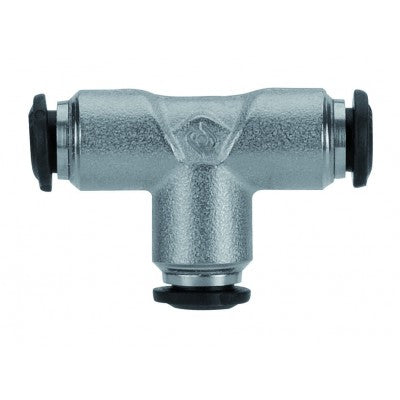

Union Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

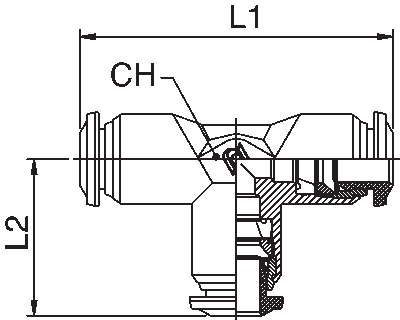

Product Number	Tube	L1	L2	CH
>50230N-3	3 mm	34 mm	17 mm	9 mm
50230N-4	4 mm	34 mm	17 mm	9 mm
50230N-5	5 mm	40 mm	20 mm	11 mm
50230N-6	6 mm	42 mm	21 mm	11 mm
50230N-8	8 mm	45 mm	22.5 mm	13 mm
50230N-10	10 mm	53 mm	26.5 mm	16 mm
50230N-12	12 mm	61 mm	30.5 mm	19 mm
50230N-14	14 mm	61 mm	65 mm	19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
