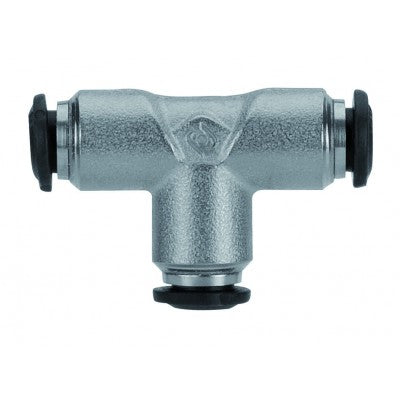

50230N-8 AIGNEP | 50N Series | Union Tee Composite | 8mm Tube | Pack of 10
50230N-8 by AIGNEP | 50N Series | Union Composite | 8mm Tube | Tee | Pack of 10
50230N-8 AIGNEP | 50N Series | Union Tee Composite | 8mm Tube | Pack of 10

50230N-8 by AIGNEP | 50N Series | Union Composite | 8mm Tube | Tee | Pack of 10

Save $27.38 Save $27.38
$68.45
$68.45 - $68.45
$68.45
$41.07
$41.07 - $41.07
$41.07

Package Quantity: 10 ea

Specifications for Variant SKU: 50230N-8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Tee
Ends Configuration: 8mm Push-to-Connect, 8mm Push-to-Connect, 8mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass

Union Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

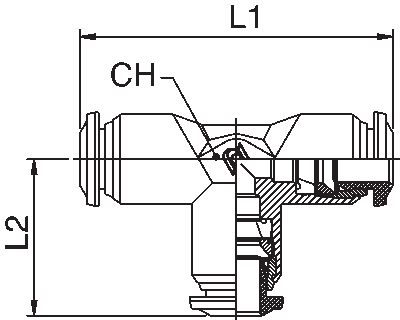

Product Number Tube L1 L2 CH
>50230N-3 3 mm 34 mm 17 mm 9 mm
50230N-4 4 mm 34 mm 17 mm 9 mm
50230N-5 5 mm 40 mm 20 mm 11 mm
50230N-6 6 mm 42 mm 21 mm 11 mm
50230N-8 8 mm 45 mm 22.5 mm 13 mm
50230N-10 10 mm 53 mm 26.5 mm 16 mm
50230N-12 12 mm 61 mm 30.5 mm 19 mm
50230N-14 14 mm 61 mm 65 mm 19 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
