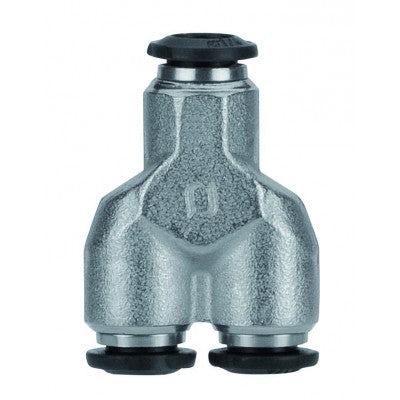

50310N-4 AIGNEP | 50N Series | Union Y | 4mm Tube | Pack of 10

50310N-4 by AIGNEP | 50N Series | Union | 4mm Tube | Y | Pack of 10

Save $20.49

$80.89

$80.89 - $80.89

$80.89

$60.40

$60.40 - $60.40

$60.40

Package Quantity: 10 ea

Specifications for Variant SKU: 50310N-4 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Y
Ends Configuration:	4mm Push-to-Connect, 4mm Push-to-Connect, 4mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass

Union Y

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

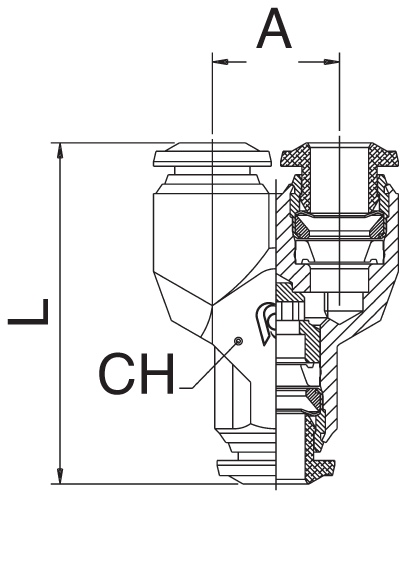

Product Number	Tube	A	L	CH
50310N-3	3 mm	10 mm	29 mm	11 mm
50310N-4	4 mm	11 mm	32 mm	11 mm
50310N-5	5 mm	13.5 mm	35 mm	13 mm
50310N-6	6 mm	13.5 mm	36.5 mm	13 mm
50310N-8	8 mm	15.5 mm	41 mm	15 mm
50310N-10	10 mm	18.5 mm	48 mm	18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
