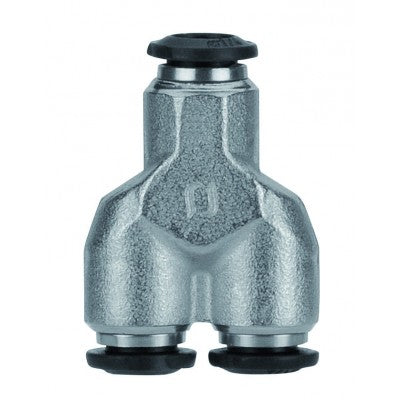

50310N-8 by AIGNEP | 50N Series | Union | 8mm Tube | Y | Pack of 10

Save $37.15 Save $37.15
Original price $92.88
Original price $92.88 - Original price $92.88
Original price $92.88
Current price $55.73
$55.73 - $55.73
Current price $55.73

Package Quantity: 10 ea

Specifications for Variant SKU: 50310N-8 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Y
Ends Configuration: 8mm Push-to-Connect, 8mm Push-to-Connect, 8mm Push-to-Connect, Some Ends Match
Material(s): Nickel-Plated Brass

Union Y

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

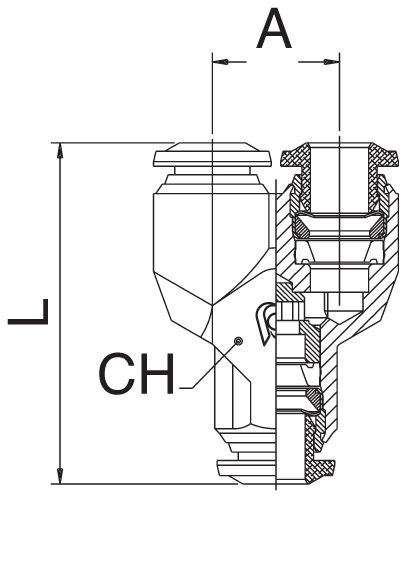

Product Number Tube A L CH
50310N-3 3 mm 10 mm 29 mm 11 mm
50310N-4 4 mm 11 mm 32 mm 11 mm
50310N-5 5 mm 13.5 mm 35 mm 13 mm
50310N-6 6 mm 13.5 mm 36.5 mm 13 mm
50310N-8 8 mm 15.5 mm 41 mm 15 mm
50310N-10 10 mm 18.5 mm 48 mm 18 mm
