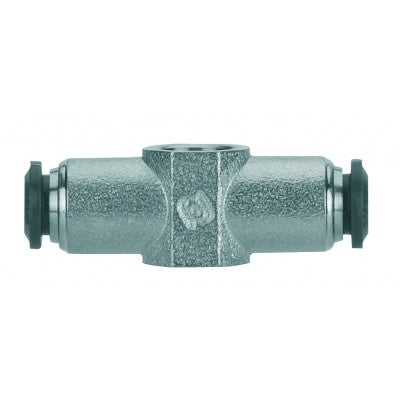

50510N-6-1/4" AIGNEP | 50N Series | Double Banjo Body Metric | 6mm Tube x 1/4" | Pack of 10
50510N-6-1/4 by AIGNEP | 50N Series | Double Banjo Body Metric | 6mm Tube x 1/4" | Pack of 10
50510N-6-1/4" AIGNEP | 50N Series | Double Banjo Body Metric | 6mm Tube x 1/4" | Pack of 10

50510N-6-1/4 by AIGNEP | 50N Series | Double Banjo Body Metric | 6mm Tube x 1/4" | Pack of 10

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Package Quantity: 10 ea

Specifications for Variant SKU: 50510N-6-1/4 AIGNEP | 10 |
Series: 50N Series
Shape (Orientation): Straight
Ends Configuration: 6mm Push-to-Connect, 1/4in Female Banjo
Material(s): Nickel-Plated Brass

Double Banjo Body Metric

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Product Number Tube A B (IN) B L CH D
50510N-4-1/8 4 mm 1/8" 0.492" 12.5 mm 38 mm 14 mm 10 mm
50510N-6-1/8 6 mm 1/8" 0.591" 15 mm 44 mm 14 mm 12.5 mm
50510N-6-1/4 6 mm 1/4" 0.669" 17 mm 50 mm 18 mm 12.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
