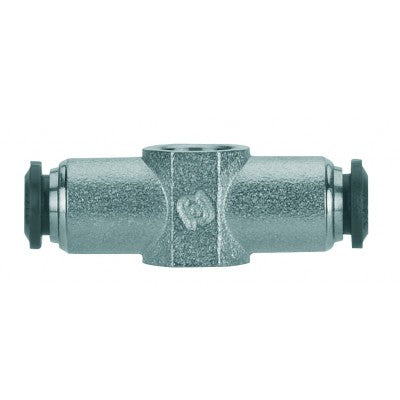

50510N-6-1/8" AIGNEP | 50N Series | Double Banjo Body Metric | 6mm Tube x 1/8" | Pack of 10

50510N-6-1/8 by AIGNEP | 50N Series | Double Banjo Body Metric | 6mm Tube x 1/8" | Pack of 10

Save $23.50

$72.70

$72.70 - $72.70

$72.70

$49.20

$49.20 - $49.20

$49.20

Package Quantity: 10 ea

Specifications for Variant SKU: 50510N-6-1/8 AIGNEP \| 10 \|
Series:	50N Series
Shape (Orientation):	Straight
Ends Configuration:	6mm Push-to-Connect, 1/8in Female Banjo
Material(s):	Nickel-Plated Brass

Double Banjo Body Metric

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass

Product Number	Tube	A	B (IN)	B	L	CH	D
50510N-4-1/8	4 mm	1/8"	0.492"	12.5 mm	38 mm	14 mm	10 mm
50510N-6-1/8	6 mm	1/8"	0.591"	15 mm	44 mm	14 mm	12.5 mm
50510N-6-1/4	6 mm	1/4"	0.669"	17 mm	50 mm	18 mm	12.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
