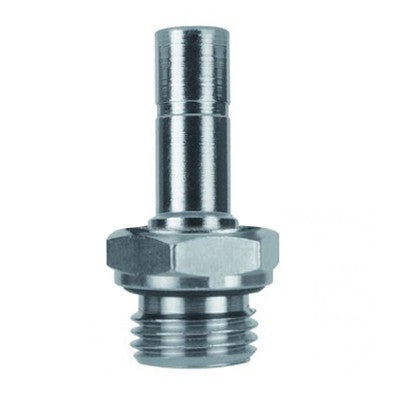

50600-10-1/4" AIGNEP | 57 Series | Male Adapter | 10mm Straight x 1/4" BSPP Male | Pack of 10

50600-10-1/4 by AIGNEP | 57 Series | 10mm x 1/4" BSPP Mae | Adapter | Straight | Pack of 10

Save $0.13

$12.30

$12.30 - $12.30

$12.30

$12.17

$12.17 - $12.17

$12.17

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 50600-10-1/4 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	Straight
Ends Configuration:	10mm Push-to-Connect, 1/4in Male BSPP
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Standpipe

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP

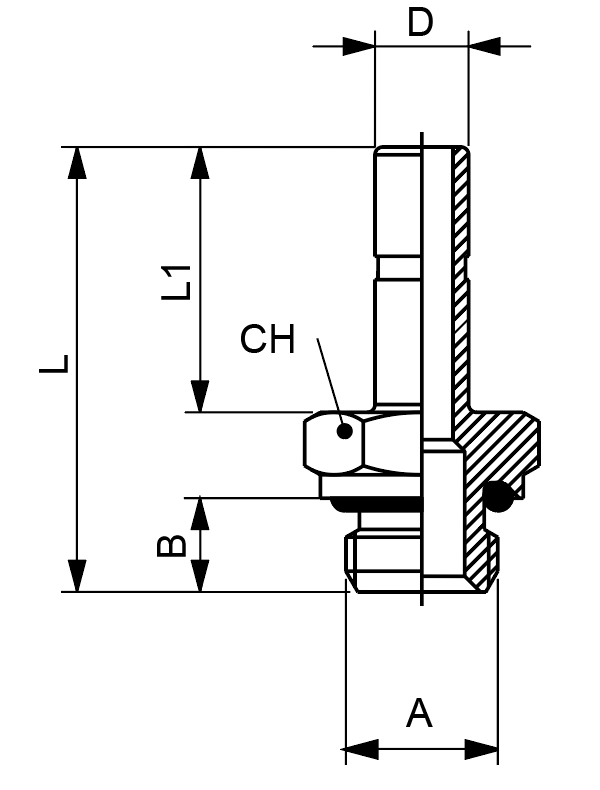

Product Number	D	A	B	L	L1	CH
50600-4-M5	4 mm	M5	4 mm	24 mm	15 mm	8 mm
50600-4-1/8	4 mm	1/8''	6 mm	26.5 mm	15 mm	13 mm
50600-5-M5	5 mm	M5	4 mm	26 mm	17 mm	8 mm
50600-5-1/8	5 mm	1/8''	6 mm	28.5 mm	17 mm	13 mm
50600-5-1/4	5 mm	1/4''	8 mm	31 mm	17 mm	16 mm
50600-6-M5	6 mm	M5	4 mm	26 mm	17 mm	8 mm
50600-6-1/8	6 mm	1/8''	6 mm	28.5 mm	17 mm	13 mm
50600-6-1/4	6 mm	1/4''	8 mm	31 mm	17 mm	16 mm
50600-8-1/8	8 mm	1/8''	6 mm	29.5 mm	18 mm	13 mm
50600-8-1/4	8 mm	1/4''	8 mm	32 mm	18 mm	16 mm
50600-8-3/8	8 mm	3/8''	9 mm	33.5 mm	18 mm	20 mm
50600-10-1/8	10 mm	1/8''	6 mm	33.5 mm	22 mm	13 mm
50600-10-1/4	10 mm	1/4''	8 mm	36 mm	22 mm	16 mm
50600-10-3/8	10 mm	3/8''	9 mm	37.5 mm	22 mm	20 mm
50600-12-1/4	12 mm	1/4''	8 mm	38.5 mm	24.5 mm	16 mm
50600-12-3/8	12 mm	3/8''	9 mm	40 mm	24.5 mm	20 mm
50600-14-1/2	14 mm	1/2"	10 mm	44 mm	26.5 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
