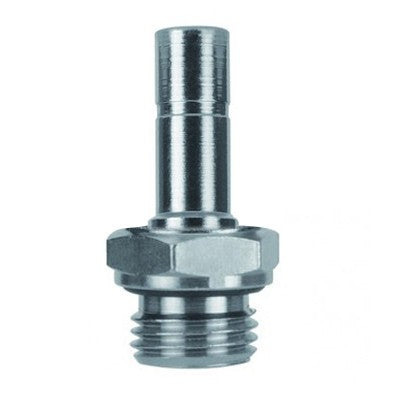

50600-4-M5 AIGNEP | 57 Series | Male Adapter | 4mm Straight x M5 Male | Pack of 10
50600-4-M5 by AIGNEP | 57 Series | 4mm x M5 Male | Adapter | Straight | Pack of 10
50600-4-M5 AIGNEP | 57 Series | Male Adapter | 4mm Straight x M5 Male | Pack of 10

50600-4-M5 by AIGNEP | 57 Series | 4mm x M5 Male | Adapter | Straight | Pack of 10

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Package Quantity: 10 ea

Specifications for Variant SKU: 50600-4-M5 AIGNEP | 10 |
Series: 57 Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Standpipe

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR
Thread Type: BSPP
Product Number D A B L L1 CH
50600-4-M5 4 mm M5 4 mm 24 mm 15 mm 8 mm
50600-4-1/8 4 mm 1/8'' 6 mm 26.5 mm 15 mm 13 mm
50600-5-M5 5 mm M5 4 mm 26 mm 17 mm 8 mm
50600-5-1/8 5 mm 1/8'' 6 mm 28.5 mm 17 mm 13 mm
50600-5-1/4 5 mm 1/4'' 8 mm 31 mm 17 mm 16 mm
50600-6-M5 6 mm M5 4 mm 26 mm 17 mm 8 mm
50600-6-1/8 6 mm 1/8'' 6 mm 28.5 mm 17 mm 13 mm
50600-6-1/4 6 mm 1/4'' 8 mm 31 mm 17 mm 16 mm
50600-8-1/8 8 mm 1/8'' 6 mm 29.5 mm 18 mm 13 mm
50600-8-1/4 8 mm 1/4'' 8 mm 32 mm 18 mm 16 mm
50600-8-3/8 8 mm 3/8'' 9 mm 33.5 mm 18 mm 20 mm
50600-10-1/8 10 mm 1/8'' 6 mm 33.5 mm 22 mm 13 mm
50600-10-1/4 10 mm 1/4'' 8 mm 36 mm 22 mm 16 mm
50600-10-3/8 10 mm 3/8'' 9 mm 37.5 mm 22 mm 20 mm
50600-12-1/4 12 mm 1/4'' 8 mm 38.5 mm 24.5 mm 16 mm
50600-12-3/8 12 mm 3/8'' 9 mm 40 mm 24.5 mm 20 mm
50600-14-1/2 14 mm 1/2" 10 mm 44 mm 26.5 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
