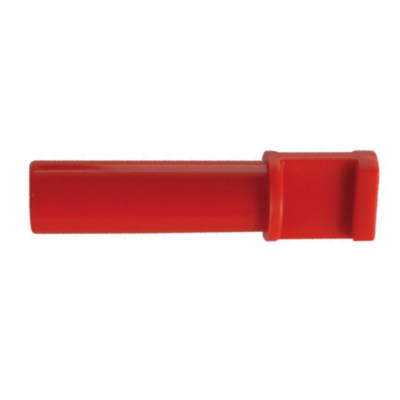

50610-12 AIGNEP | 50N Series | Plug | 12mm | Pack of 10

50610-12 by AIGNEP | 50N Series | Plug | 12mm | Red | Polyamide | Pack of 10

Save $14.00

$25.07

$25.07 - $25.07

$25.07

$11.07

$11.07 - $11.07

$11.07

Package Quantity: 10 ea

Specifications for Variant SKU: 50610-12 AIGNEP \| 10 \|
Series:	50N Series
Ends Configuration:	12mm Tube Stem
Material(s):	Polyamide

Polyamide Plug

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-160° F
Media: Compressed air, Vacuum, Water, Steam
Body: Polyamide

Product Number	D	G	L	L1
50610-3	3 mm	5 mm	30.5 mm	18 mm
50610-4	4 mm	6 mm	29.5 mm	15.5 mm
50610-5	5 mm	7 mm	33.5 mm	18 mm
50610-6	6 mm	8 mm	32 mm	15.5 mm
50610-8	8 mm	10 mm	35.5 mm	19.5 mm
50610-10	10 mm	12 mm	40 mm	19.5 mm
50610-12	12 mm	14 mm	41.5 mm	20 mm
50610-14	14 mm	16 mm	42 mm	19.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
