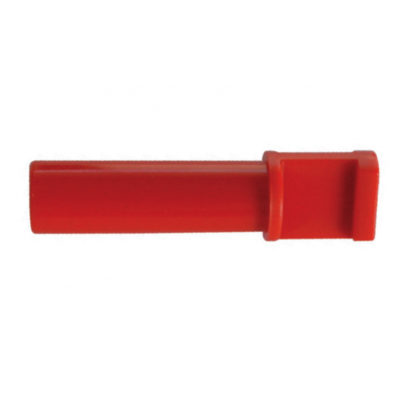

50610-6 AIGNEP | 50N Series | Plug | 6mm | Pack of 10

50610-6 by AIGNEP | 50N Series | Plug | 6mm | Red | Polyamide | Pack of 10

Save $4.01

$10.02

$10.02 - $10.02

$10.02

$6.01

$6.01 - $6.01

$6.01

Package Quantity: 10 ea

Specifications for Variant SKU: 50610-6 AIGNEP \| 10 \|
Series:	50N Series
Ends Configuration:	6mm Push-to-Connect, 6mm Push-to-Connect, Some Ends Match
Material(s):	Polyamide

Polyamide Plug

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-160° F
Media: Compressed air, Vacuum, Water, Steam
Body: Polyamide

Product Number	D	G	L	L1
50610-3	3 mm	5 mm	30.5 mm	18 mm
50610-4	4 mm	6 mm	29.5 mm	15.5 mm
50610-5	5 mm	7 mm	33.5 mm	18 mm
50610-6	6 mm	8 mm	32 mm	15.5 mm
50610-8	8 mm	10 mm	35.5 mm	19.5 mm
50610-10	10 mm	12 mm	40 mm	19.5 mm
50610-12	12 mm	14 mm	41.5 mm	20 mm
50610-14	14 mm	16 mm	42 mm	19.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
